Front Side Door Front Auxiliary Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

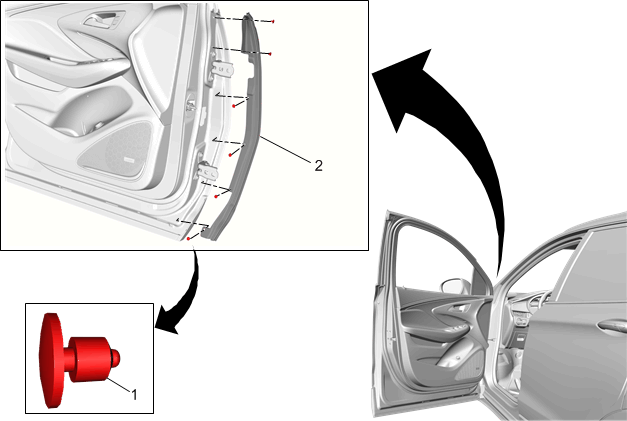

Callout	Component Name
Preliminary Procedure  Front Side Door Window Weatherstrip Replacement
1	Front Side Door Front Auxiliary Weatherstrip Retainer [6x] Procedure  Using the appropriate tool, remove the front side door front auxiliary weatherstrip retainers.
2	Front Side Door Front Auxiliary Weatherstrip
