Home >> Buick >> 2020 >> Envision Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Driver Information System Wiring Schematics >> Clock

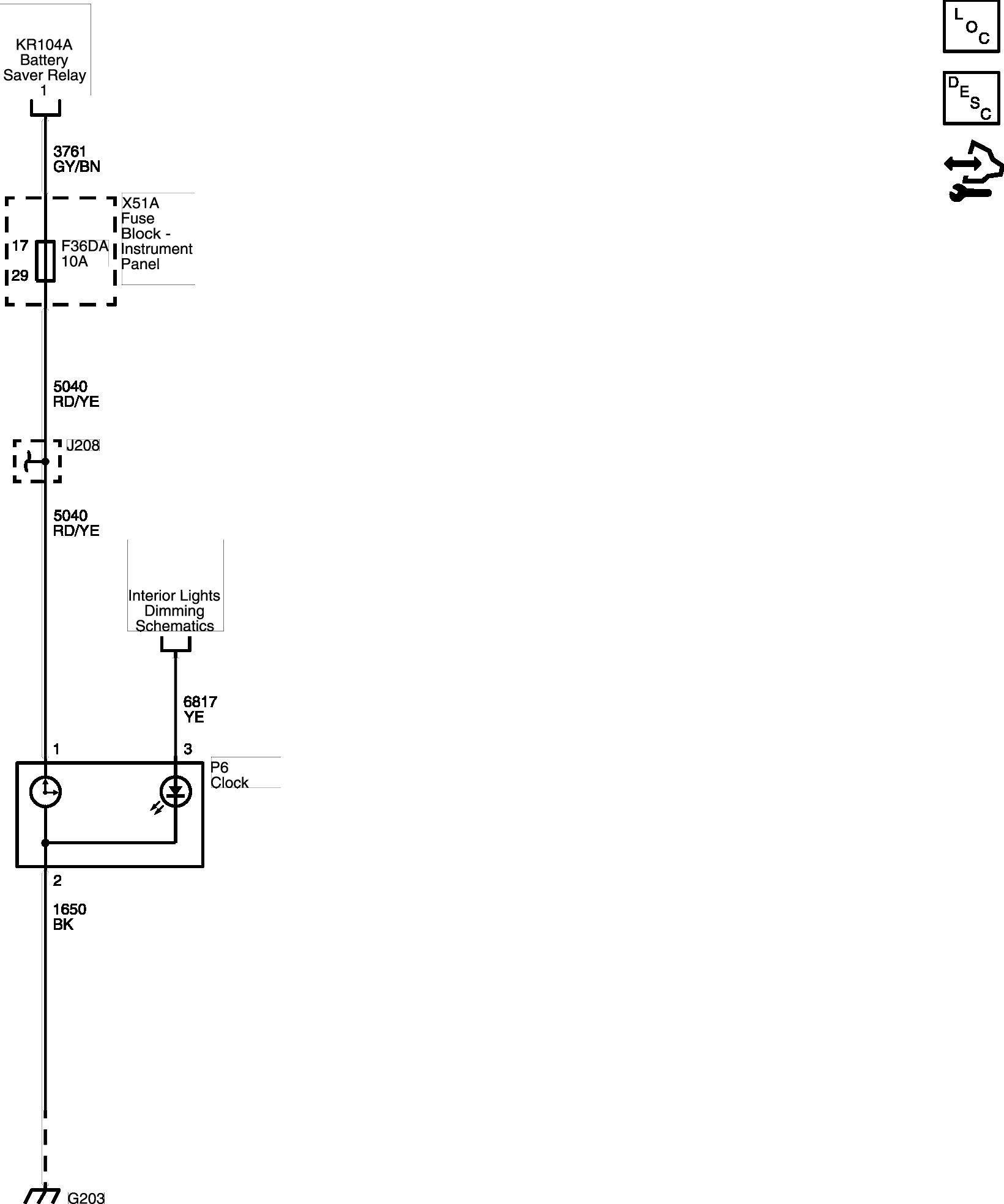

Driver Information System Wiring Schematics: Clock

GM5156244

Courtesy of GENERAL MOTORS COMPANY
