Preliminary Procedures
- Drain the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
- Engine Control Module - Reposition - Engine Control Module Replacement
|
| 1 |

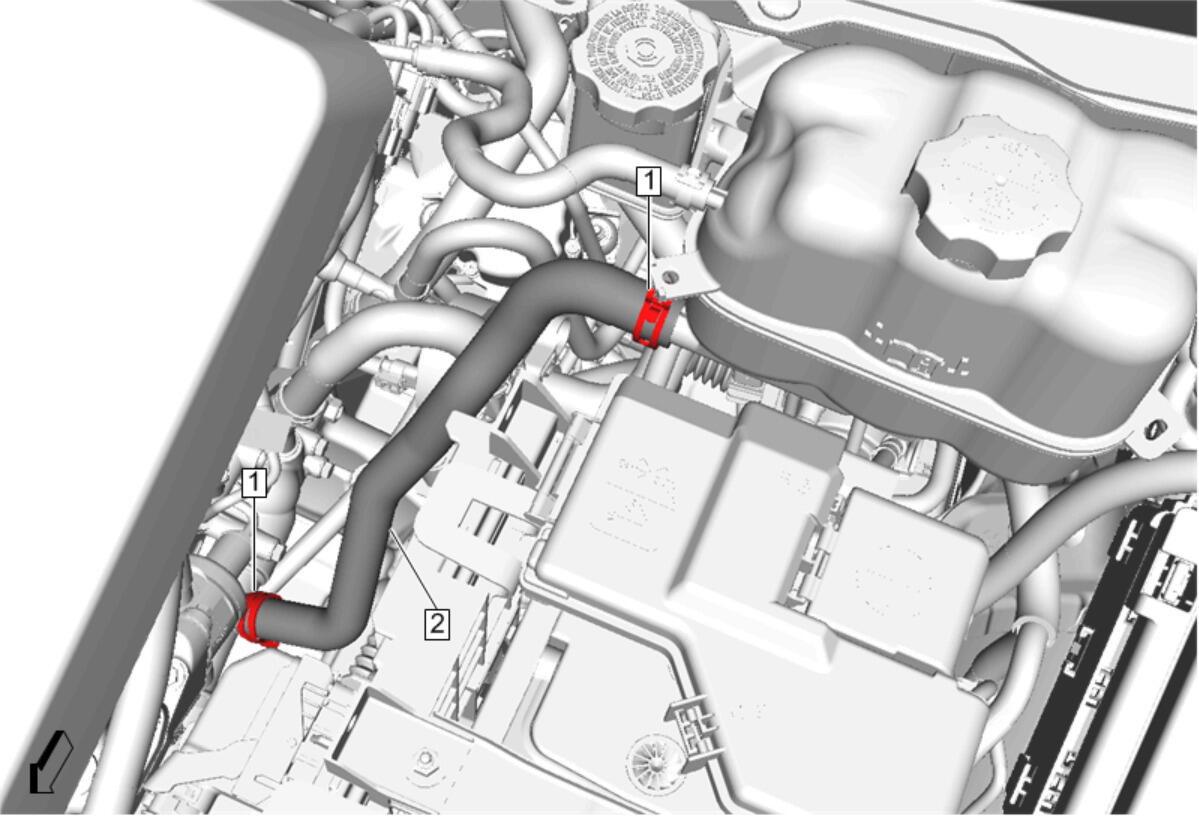

Radiator Surge Tank Outlet Hose Clamp [2x]
Procedure
Hose Clamp Replacement Guidelines - Spring Type |
| 2 |
Radiator Surge Tank Outlet Hose Procedure
- Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static Fill)
- Start the engine and check for coolant leaks.
|
