Rear Side Door Accessory Switch Mount Plate Replacement

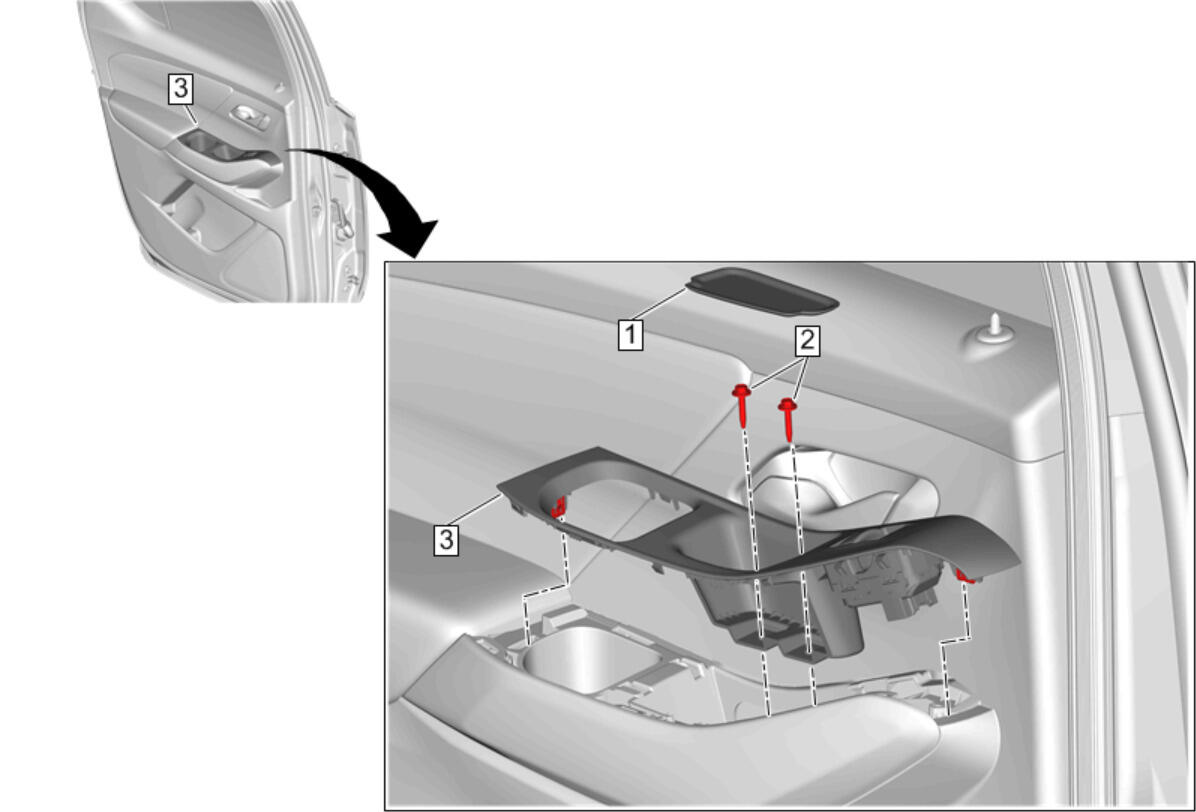

Fig 1: Rear Side Door Accessory Switch Mount Plate Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
1	Rear Side Door Pull Cup Liner
2	Rear Side Door Armrest Pull Cup Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Side Door Accessory Switch Mount Plate Procedure Using a flat-bladed plastic trim tool, start at the rear of the accessory switch mount plate and gently insert trim tool to lift the rear side door accessory switch mount plate from the door trim assembly. Disconnect the electrical connector. Transfer parts as necessary.

Callout

Component Name

Rear Side Door Pull Cup Liner

Rear Side Door Armrest Pull Cup Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Side Door Accessory Switch Mount Plate

Procedure

Using a flat-bladed plastic trim tool, start at the rear of the accessory switch mount plate and gently insert trim tool to lift the rear side door accessory switch mount plate from the door trim assembly.
Disconnect the electrical connector.
Transfer parts as necessary.
