Front Side Door Accessory Switch Mount Plate Replacement - Driver Side

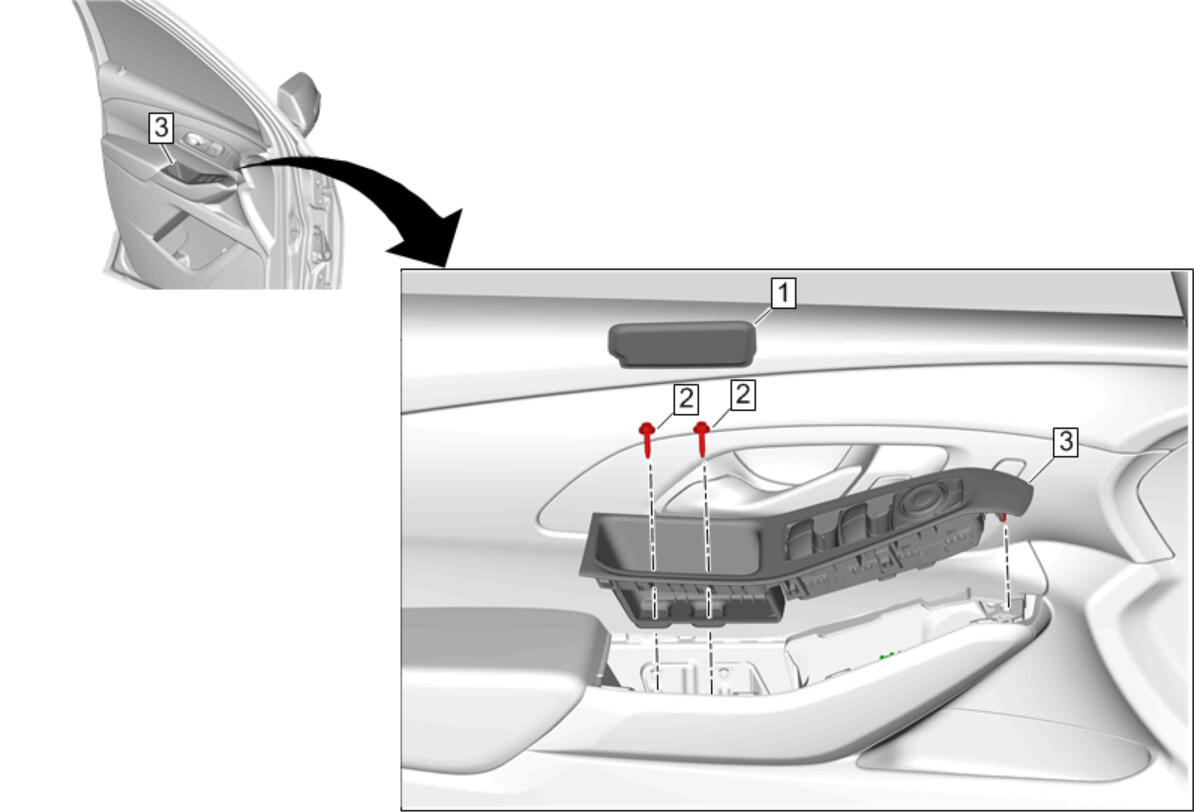

Fig 1: Front Side Door Accessory Switch Mount Plate - Driver Side Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
1	Front Side Door Pull Cup Liner
2	Front Side Door Armrest Pull Cup Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Side Door Accessory Switch Mount Plate - Driver Side Procedure Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim assembly. Disconnect the electrical connector. Transfer parts as necessary.

Callout

Component Name

Front Side Door Pull Cup Liner

Front Side Door Armrest Pull Cup Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Side Door Accessory Switch Mount Plate - Driver Side

Procedure

Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim assembly.
Disconnect the electrical connector.
Transfer parts as necessary.
