Rear Closure Hands Free Lamp Replacement

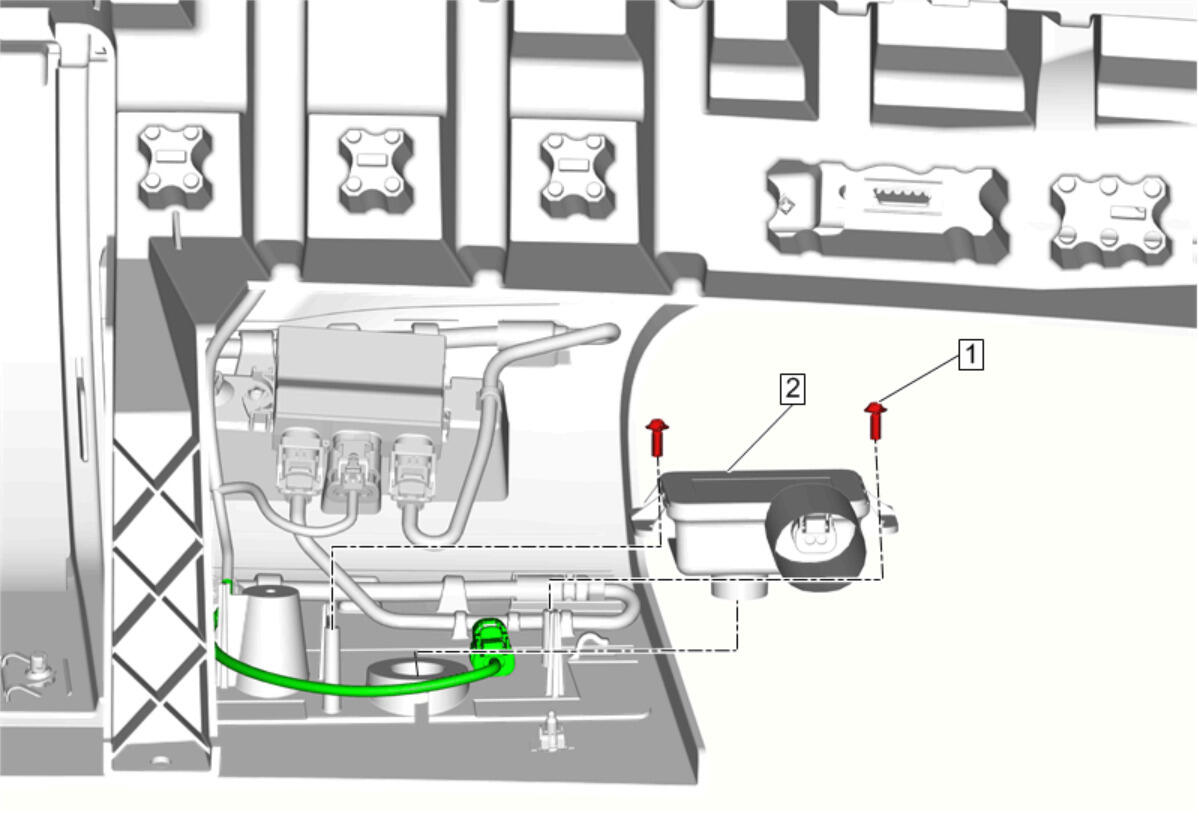

Fig 1: Rear Closure Hands Free Lamp Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Rear Closure Hands Free Lamp Screw [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Closure Hands Free Lamp Procedure Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Rear Closure Hands Free Lamp Screw [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Hands Free Lamp

Procedure
