Rear Body Structure Stop Lamp Replacement

Courtesy of GENERAL MOTORS COMPANY

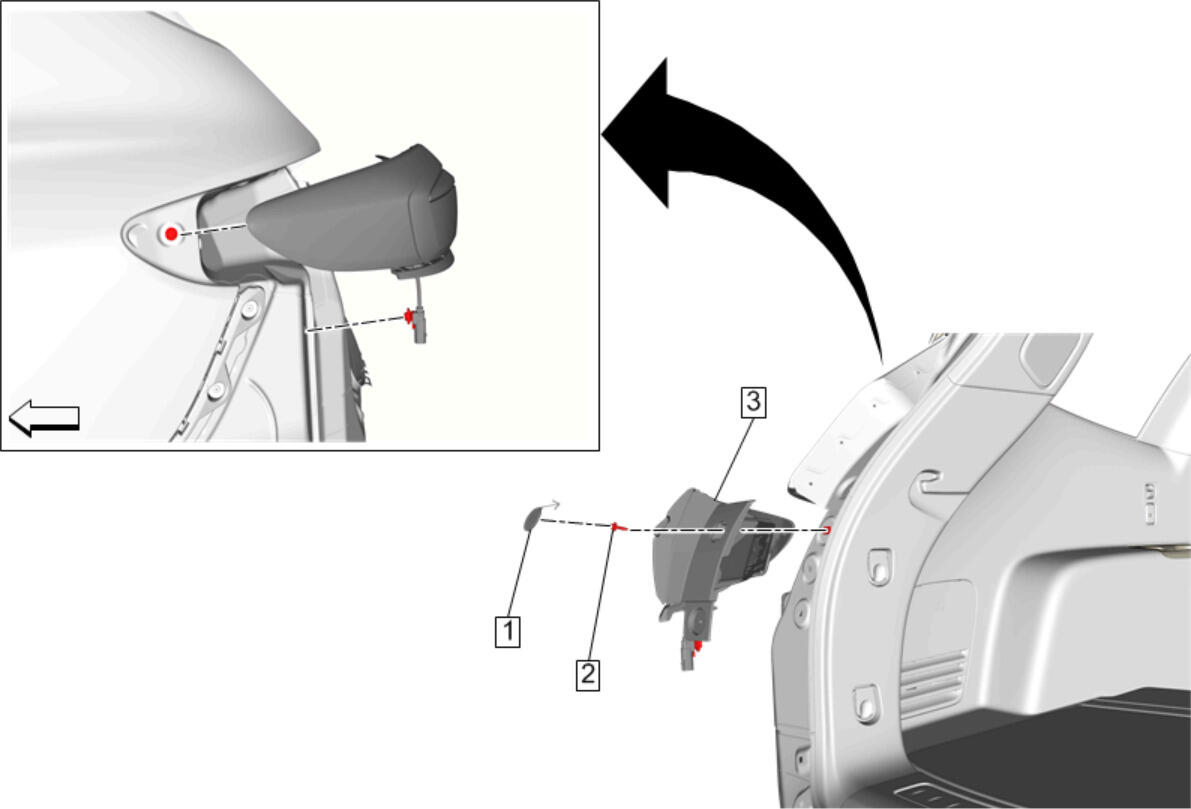

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Rear Body Structure Stop Lamp Cap
2	Rear Body Structure Stop Lamp Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Body Structure Stop Lamp Procedure Carefully pull the lamp rearward in order to disengage the lamp from the locator at the body side outer panel. Disconnect the wiring harness retainer from the body panel. Disconnect the electrical connector.
