Instrument Panel Light Conductor Lamp Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Replacement

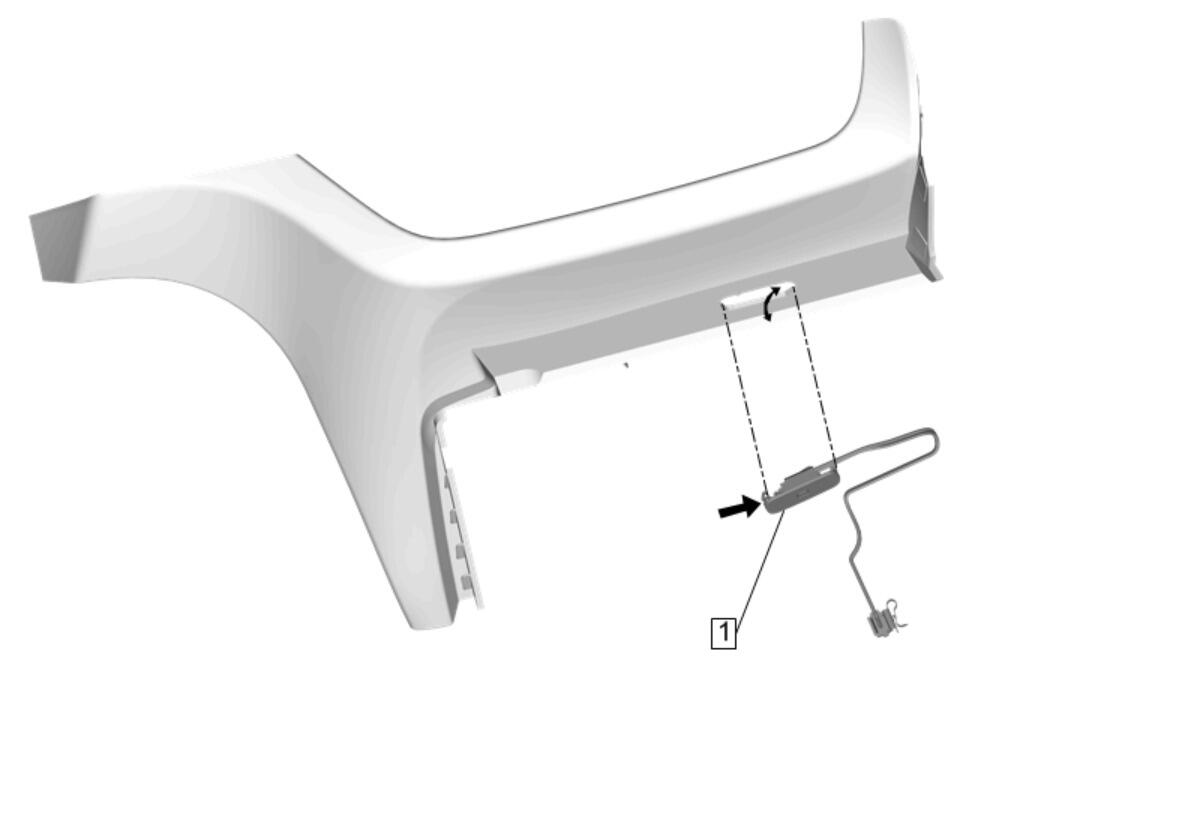

1	Instrument Panel Light Conductor Lamp Procedure Note the location and routing of the lamp prior to removal to ensure proper installation. Use a plastic trim tool to release the tab. Disconnect the electrical connector.

Callout

Component Name

Instrument Panel Light Conductor Lamp

Procedure

Note the location and routing of the lamp prior to removal to ensure proper installation.
Use a plastic trim tool to release the tab.
Disconnect the electrical connector.
