Front Side Door Inside Handle Illumination Lamp Replacement

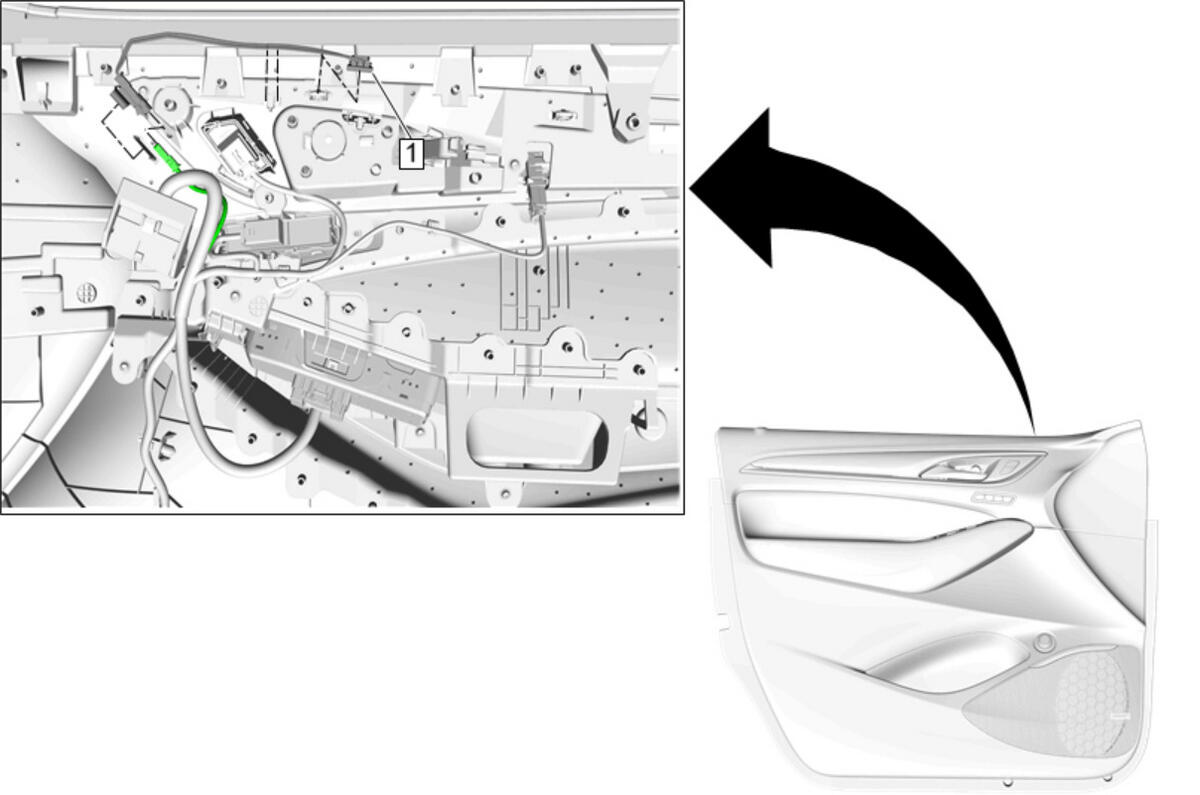

GM4822637Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Side Door Inside Handle Illumination Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the lamp from the trim panel tabs.
