Rear Side Door Check Link Replacement

Courtesy of GENERAL MOTORS COMPANY

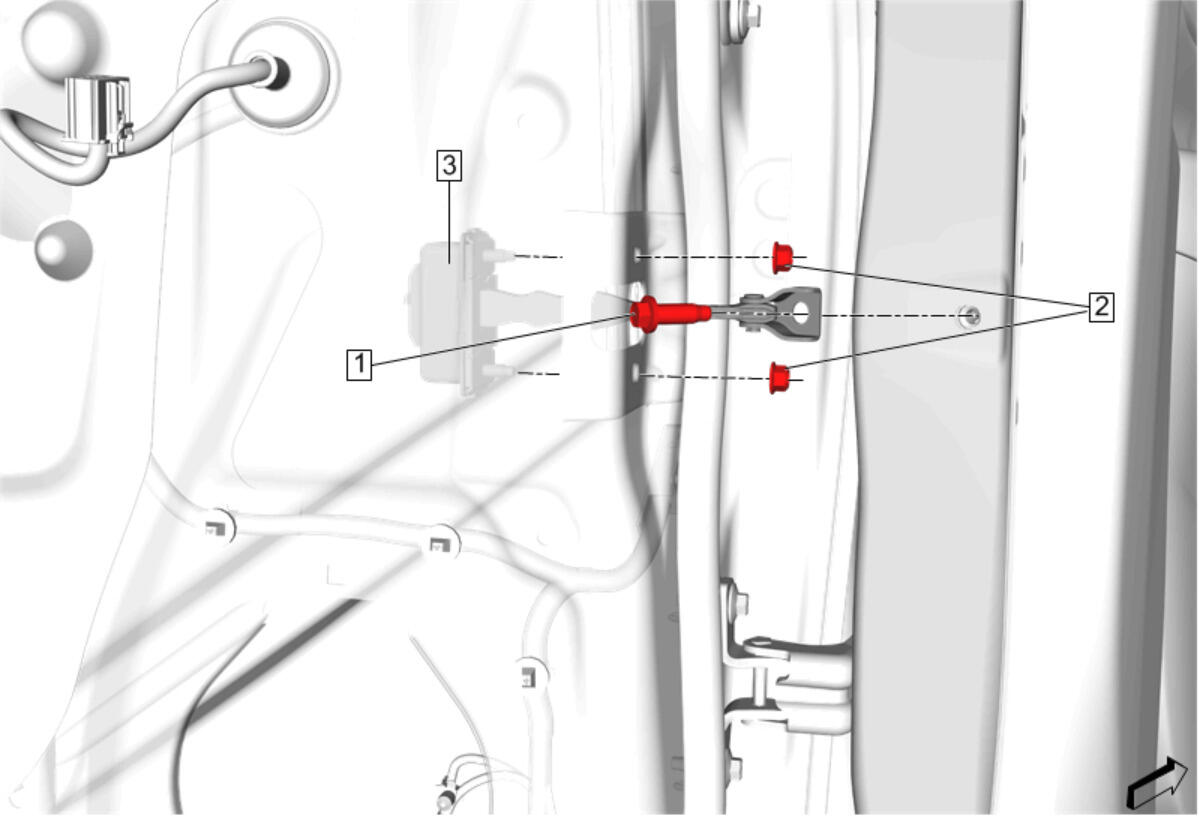

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Radio Rear Side Door Speaker Replacement
1	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Rear Side Door Check Link Nut [2x] Tighten 9 N.m (80 lb in)
3	Rear Side Door Check Link
