Liftgate Replacement

Courtesy of GENERAL MOTORS COMPANY

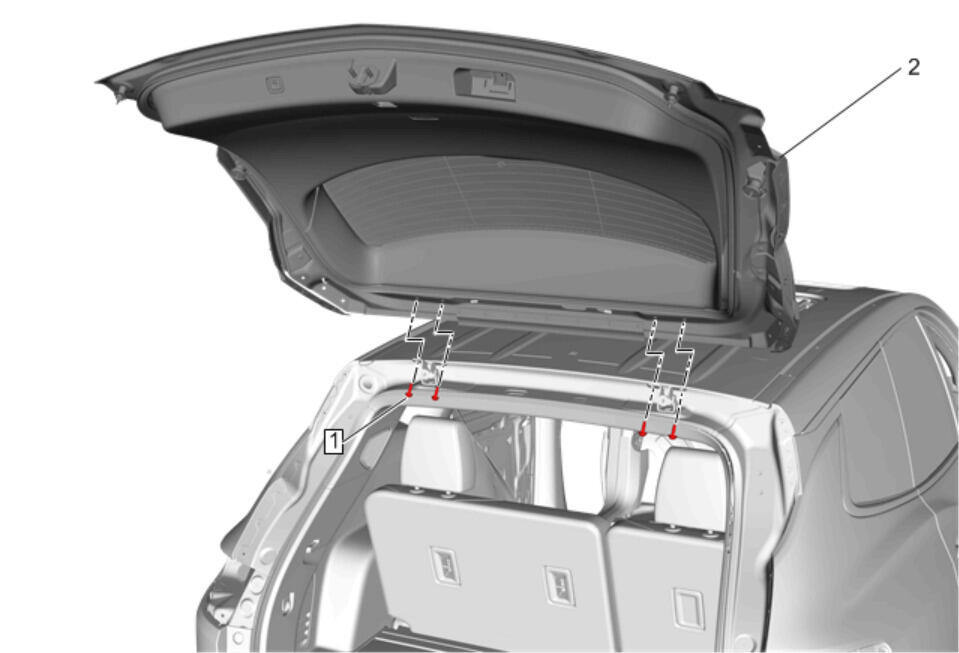

Callout	Component Name
WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedures Liftgate Strut Replacement Disconnect all electrical connectors.
1	Liftgate Hinge Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Procedure With the aid of an assistant, remove the liftgate. Transfer components as necessary. Liftgate - Adjust - Liftgate Adjustment

Callout

Component Name

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedures

Liftgate Strut Replacement
Disconnect all electrical connectors.

Liftgate Hinge Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Liftgate

Procedure

With the aid of an assistant, remove the liftgate.
Transfer components as necessary.
Liftgate - Adjust - Liftgate Adjustment
