Liftgate Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

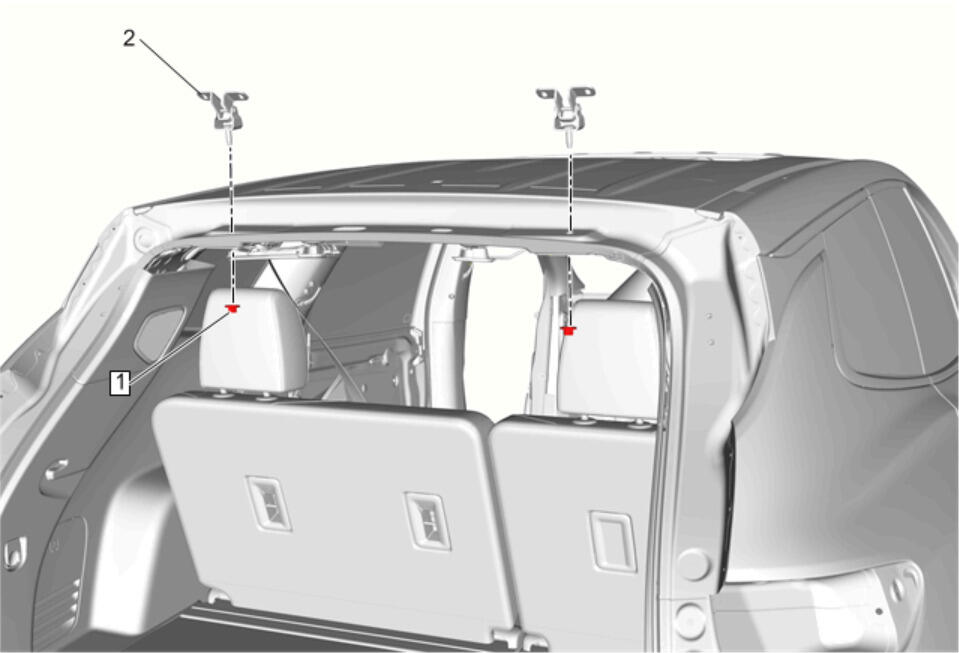

Callout	Component Name
Preliminary Procedures Liftgate Replacement Lower the rear of the headliner to access the nuts. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U) Mark the position of the hinges with a grease pencil.
1	Liftgate Hinge Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Liftgate Hinge [2x] Procedure Liftgate - Adjust Liftgate Adjustment

Callout

Component Name

Preliminary Procedures

Liftgate Replacement
Lower the rear of the headliner to access the nuts. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
Mark the position of the hinges with a grease pencil.

Liftgate Hinge Nut [2x]

CAUTION:

Tighten
58 N.m (43 lb ft)

Liftgate Hinge [2x]
Procedure
Liftgate - Adjust Liftgate Adjustment
