Hood Replacement

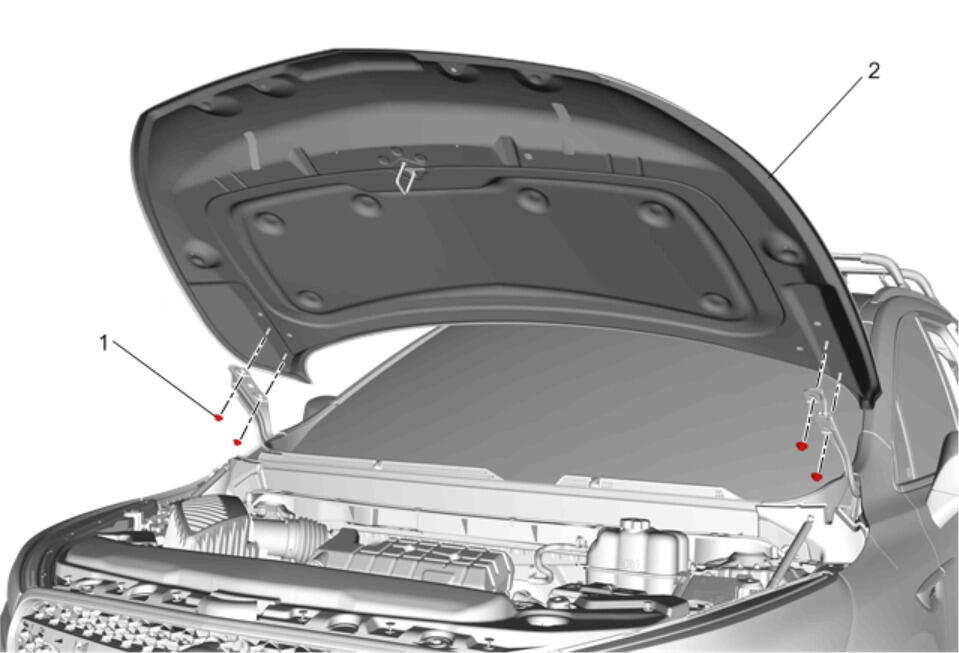

GM4808141Courtesy of GENERAL MOTORS COMPANY

Hood Replacement

Callout Component Name
Preliminary Procedure
Hood Strut Replacement
1 Hood Hinge Nut [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Hood

Procedure

  1. With the aid of an assistant, remove the hood.
  2. Transfer components as necessary.
  3. Hood - Adjust - Hood Adjustment
