Front Side Door Replacement

Courtesy of GENERAL MOTORS COMPANY

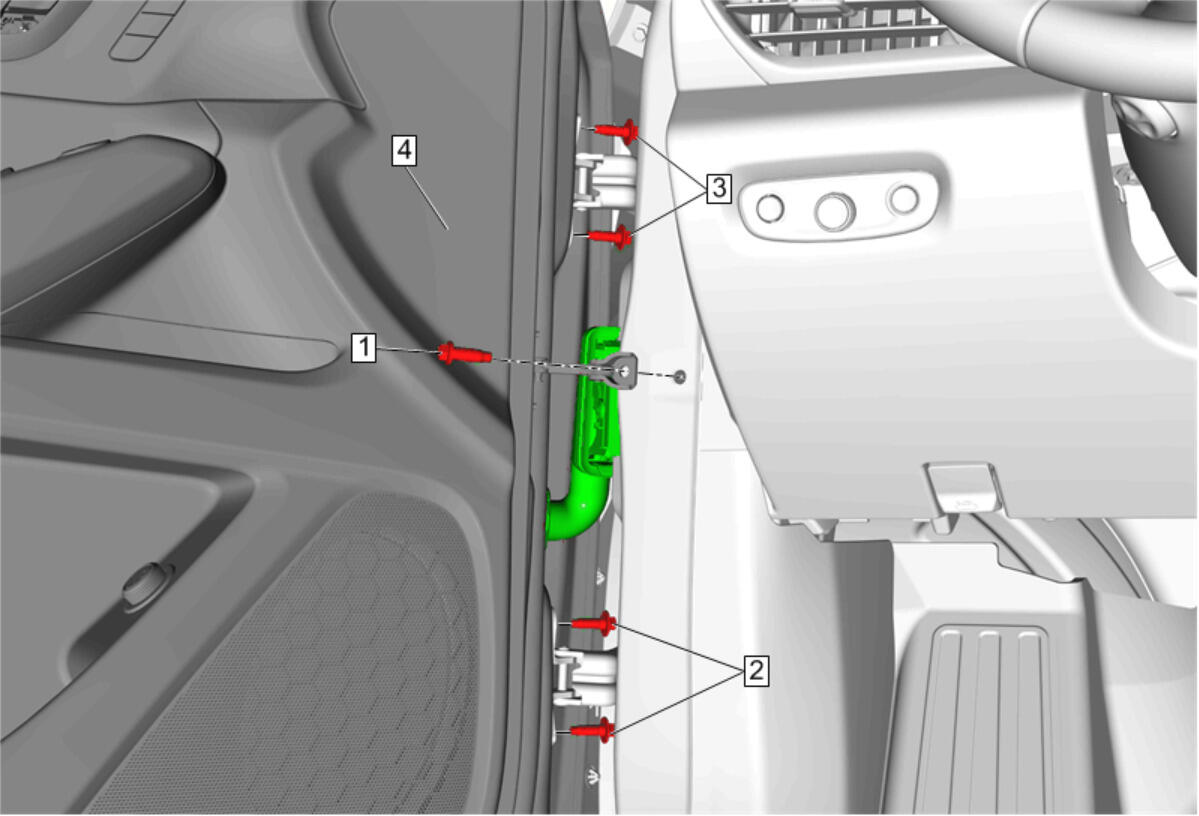

Callout	Component Name
Preliminary Procedures Mark the location of the hinge before removing the bolts with a grease pencil. Disconnect the electrical connector. Support the door before removing the hinge fastener.
1	Front Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Side Door Hinge Bolt - Door Side [2x] Tighten 25 N.m (18 lb ft)
3	Front Side Door Hinge Bolt - Door Side [2x] Tighten 25 N.m (18 lb ft)
4	Front Side Door Procedure With the aid of an assistant, remove the door. Transfer components as necessary. Front Side Door Adjustment
