Front Fender Front Bracket Replacement
Front Fender Front Bracket Replacement

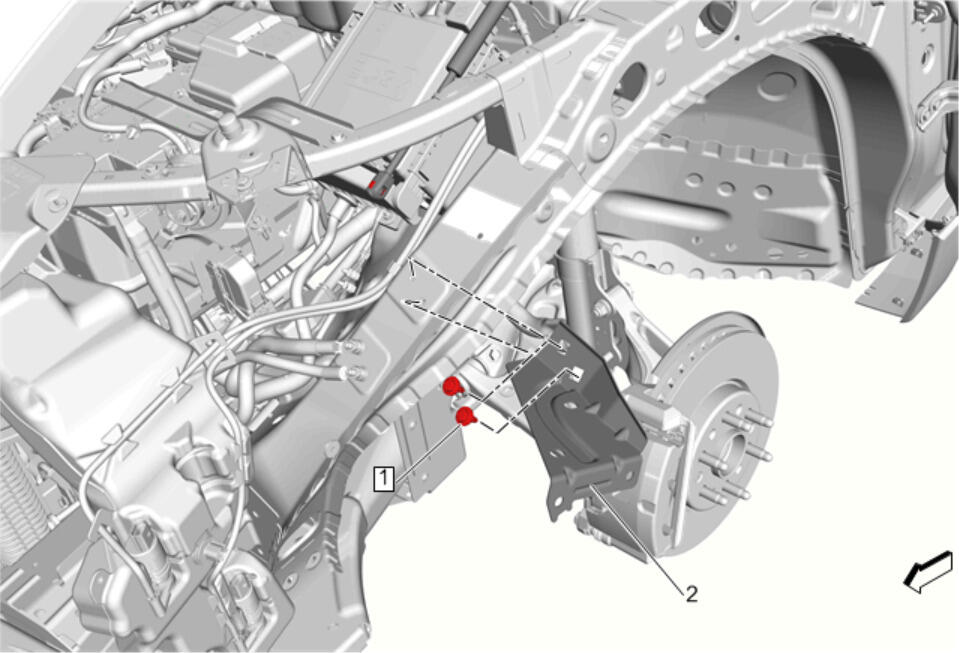

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Fender Replacement |
|
| 1 | Front Fender Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Fender Front Bracket |
