Front Parking Assist Alarm Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

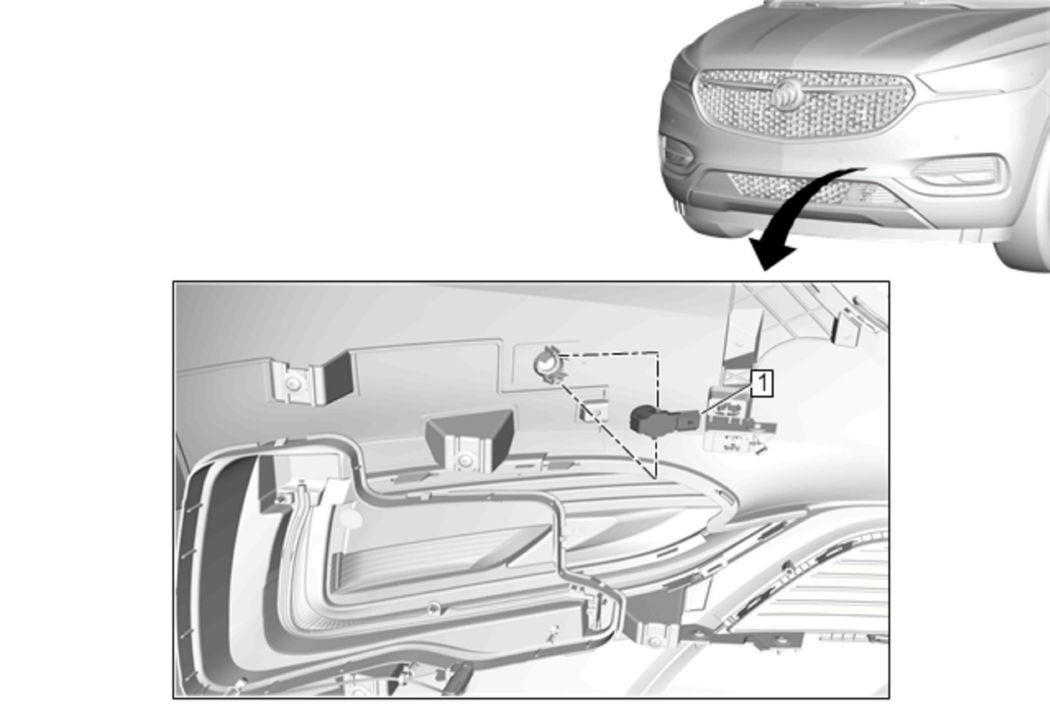

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the front parking assist alarm sensor bracket. Perform the necessary programming and setup procedure: Control Module References NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.

Callout

Component Name

Front Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the front parking assist alarm sensor bracket.
Perform the necessary programming and setup procedure: Control Module References

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.
