Video Display Inside Rearview Mirror Camera Replacement (DRZ)

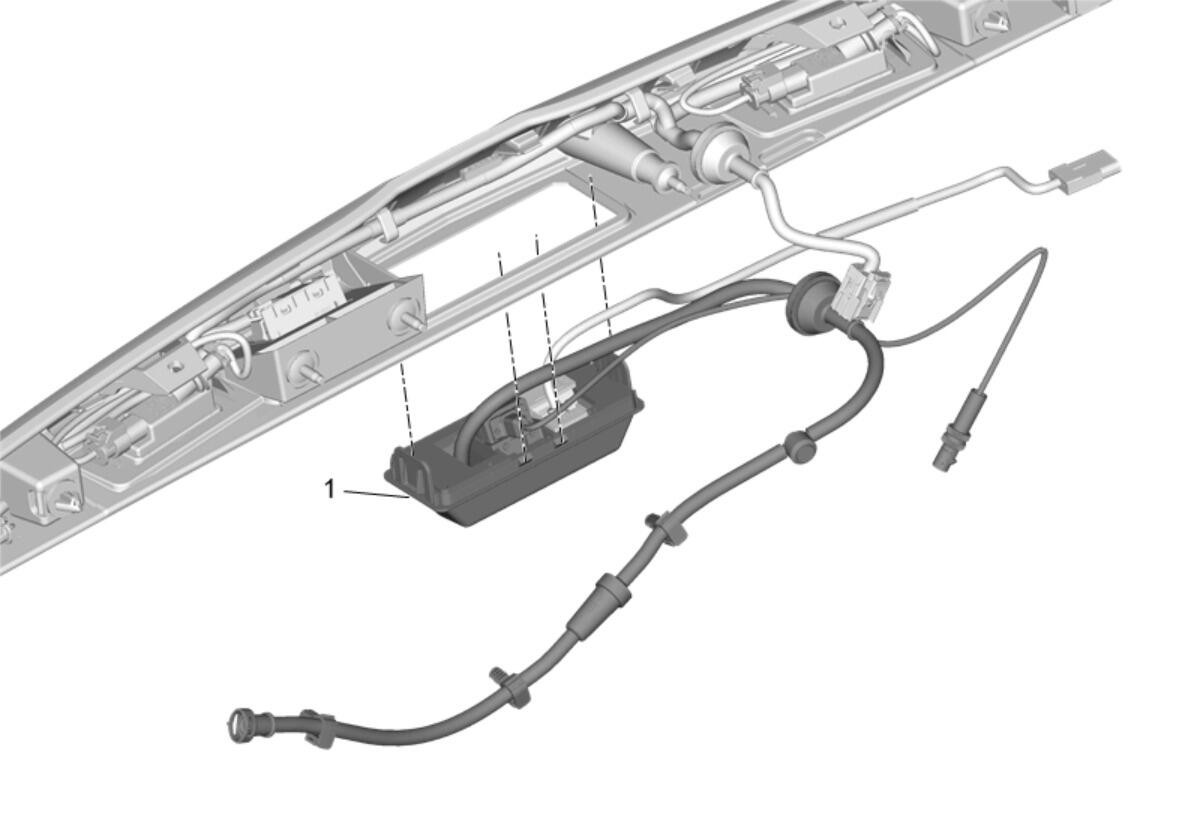

GM4817679Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Closure Center Applique Replacement
1 Video Display Inside Rearview Mirror Camera

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
  3. Transfer components as necessary.
