Rearview Driver Information Camera Replacement (Without DRZ)

Courtesy of GENERAL MOTORS COMPANY

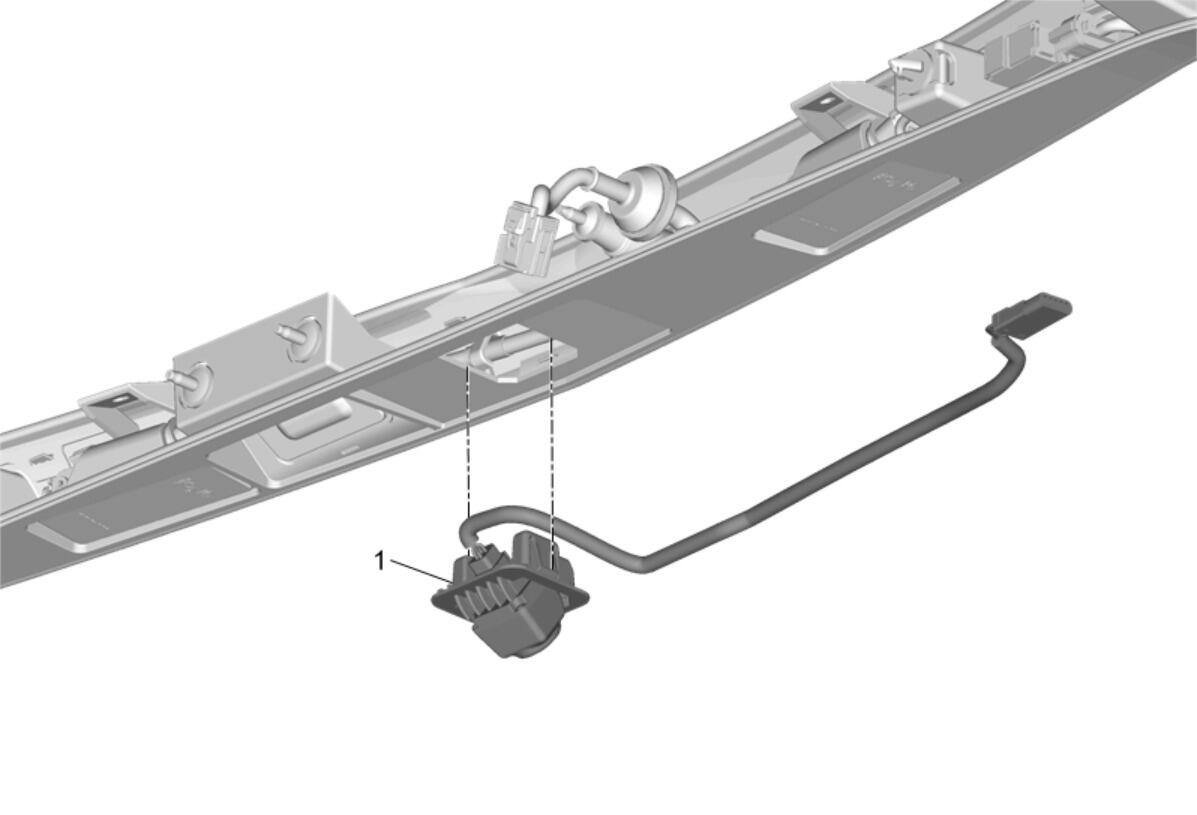

Callout	Component Name
Preliminary Procedure Rear Closure Center Applique Replacement
1	Rearview Driver Information Camera NOTE: This kit is to be used for antenna coax cables ONLY. It should not be used for rear view camera coax cable as connector ends are not sealed and could cause corrosion. Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Rear Closure Center Applique Replacement

Rearview Driver Information Camera

NOTE:

This kit is to be used for antenna coax cables ONLY. It should not be used for rear view camera coax cable as connector ends are not sealed and could cause corrosion.

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
