X909 Liftgate Extension Harness to Liftgate Harness (DRZ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

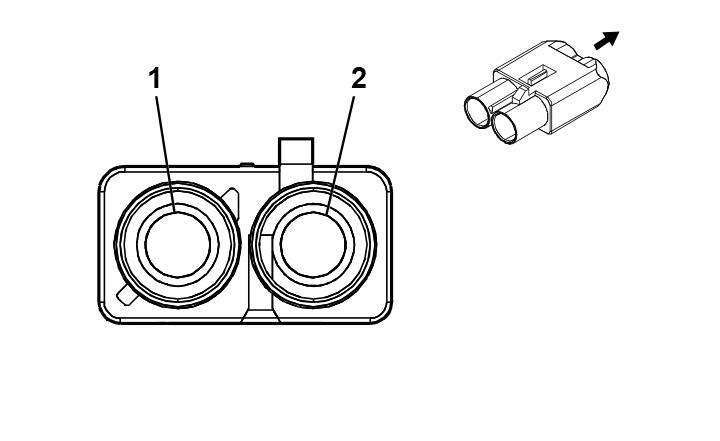

Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 2289732-9
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (BG)
|
Connector Part Information
- Harness Type: Liftgate COAX
- OEM Connector: 2272522-9
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way M Coax Type (BG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
- |
- |
Not Occupied |
1 - 2 |
- |
- |
- |
- |
- |
| C1 |
0 |
GY/YE |
6972 |
I |
UV2 |
Rearview Camera Signal [+] |
C1 |
0 |
GY/YE |
6972 |
II |
UV2 |
| C2 |
0 |
GY |
6208 |
I |
DRZ |
Coaxial Camera Signal |
C2 |
0 |
GY |
6208 |
II |
DRZ |
| S1 |
0.35 |
WH/BU |
6973 |
I |
UV2 |
Rearview Camera Signal [-] |
S1 |
0 |
WH/BU |
6973 |
II |
UV2 |
| S2 |
0.35 |
BARE |
6209 |
I |
DRZ |
Camera Coaxial Cable Low Reference |
S2 |
0 |
BARE |
6209 |
II |
DRZ |
