X901 License Lamp Harness to Liftgate Harness (X88-DRZ)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

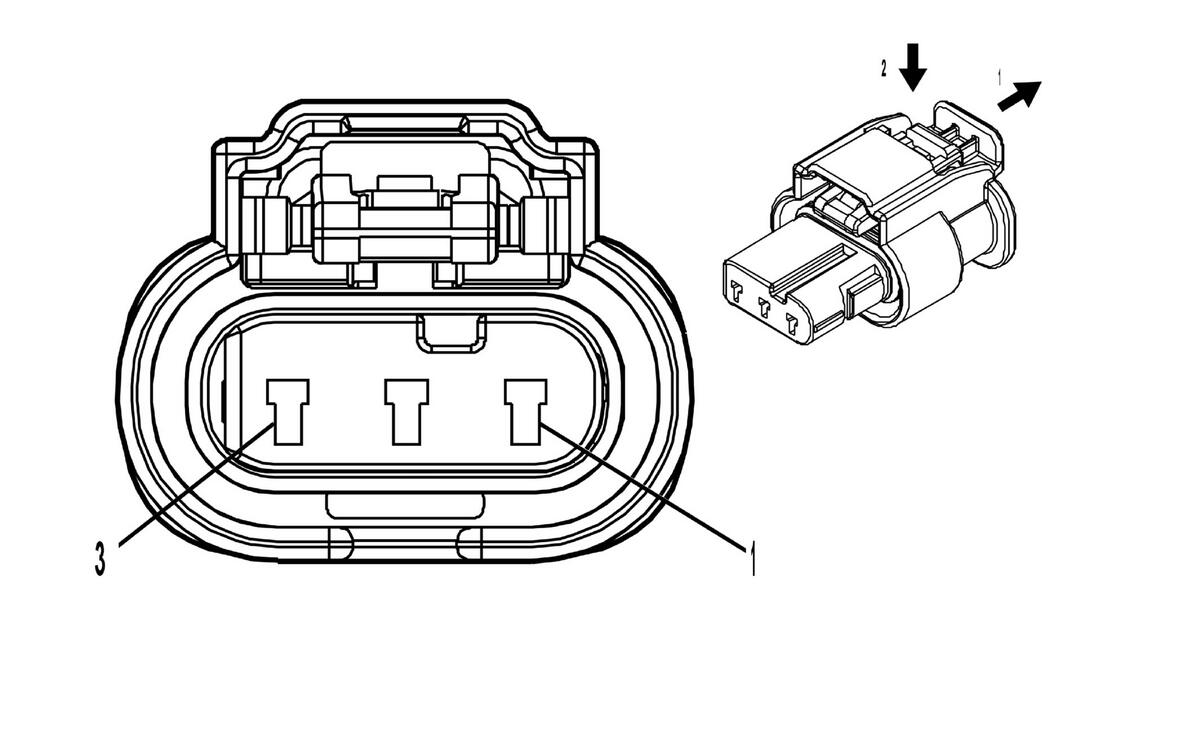

Connector Part Information
- Harness Type: License Lamp
- OEM Connector: 13506523
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13514259
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way M 1.2 MCON-LL Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
0.35 |
BK |
1350 |
I |
- |
Ground 13 |
2 |
0.35 |
BK |
1350 |
II |
- |
| 3 |
0.35 |
GN/YE |
6846 |
I |
- |
Rear License Plate Lamp Control |
3 |
0.35 |
GN/YE |
6846 |
II |
- |
