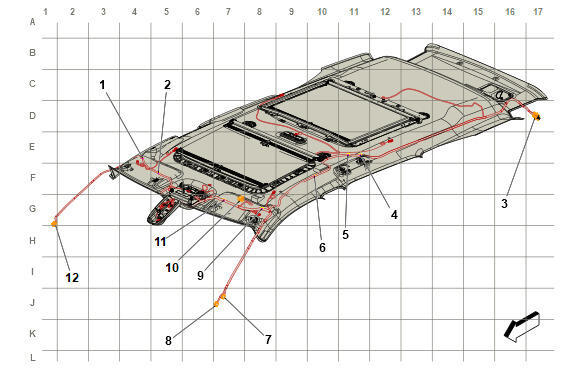

Headliner Harness Routing
Headliner Harness Routing
| Harness Name | Callout |
|---|---|
| J343 Headliner Harness (without C3U) | 1 |
| J344 Headliner Harness (without C3U) | 2 |
| X307 X307 Headliner Harness to Body Harness , or X307 Headliner Harness to Body Harness (X88) | 3 |
| J342 Headliner Harness (without C3U) | 4 |
| J349 Headliner Harness | 5 |
| J340 Headliner Harness (without C3U) | 6 |
| X203 Headliner Harness to Instrument Panel Harness X203 Headliner Harness to Instrument Panel Harness | 7 |
| X204 Headliner Harness to Instrument Panel Harness X204 Headliner Harness to Instrument Panel Harness (W49) , or X204 Headliner Harness to Instrument Panel Harness (X88) | 8 |
| J341 Headliner Harness (without C3U) | 9 |
| X407 Headliner Harness to Sunroof Harness (C3U) X407 Headliner Harness to Sunroof Harness | 10 |
| J346 Headliner Harness (CE1 with UG1) | 11 |
| X205 Headliner Harness to Instrument Panel Harness X205 Headliner Harness to Instrument Panel Harness | 12 |
