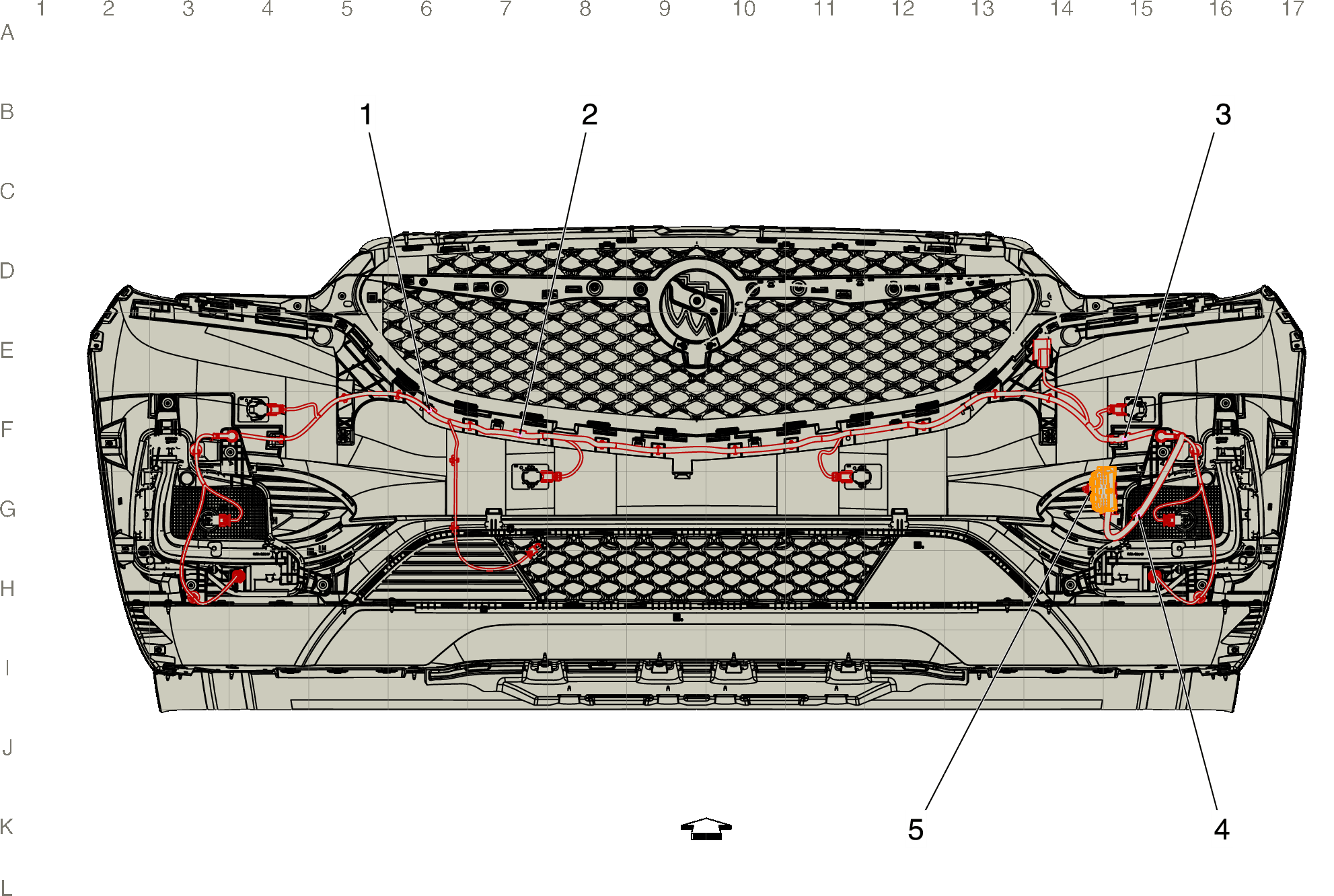

Front Fascia Harness Routing (W49)
Front Fascia Harness Routing (W49)
| Harness Name | Callout |
|---|---|
| J115 Front Fascia Harness (UD5 or UFQ) | 1 |
| J113 Front Fascia Harness (UD5 or UFQ) | 2 |
| J114 | 3 |
| J111 | 4 |
| X102 Forward Lamp Harness to Front Fascia Harness X102 Forward Lamp Harness to Front Fascia Harness (W49) , X102 Forward Lamp Harness to Front Fascia Harness (X88+CZ3) , or X102 Forward Lamp Harness to Front Fascia Harness (X88-CZ3) | 5 |
