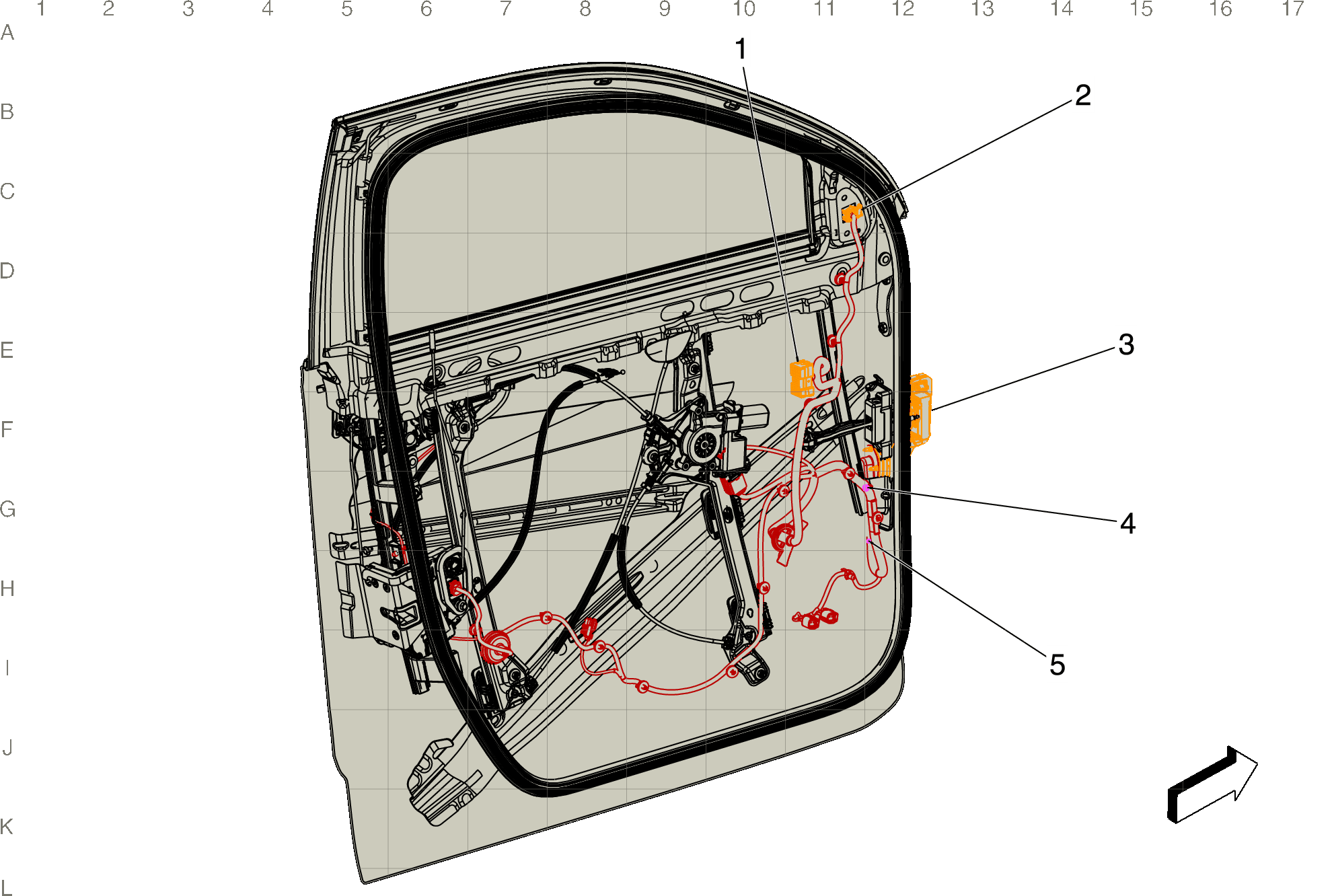

Driver Door Harness Routing (X88)
Driver Door Harness Routing (X88)
| Harness Name | Callout |
|---|---|
| X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness (W49) , or X505 Driver Door Harness to Driver Door Trim Harness (X88) | 1 |
| X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness (W49) , or X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness (X88) | 2 |
| X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness (W49) , or X500 Driver Door Harness to Body Harness (X88) | 3 |
| J501 Driver Door Harness | 4 |
| J500 Driver Door Harness | 5 |
