Center Console Harness Routing (X88)

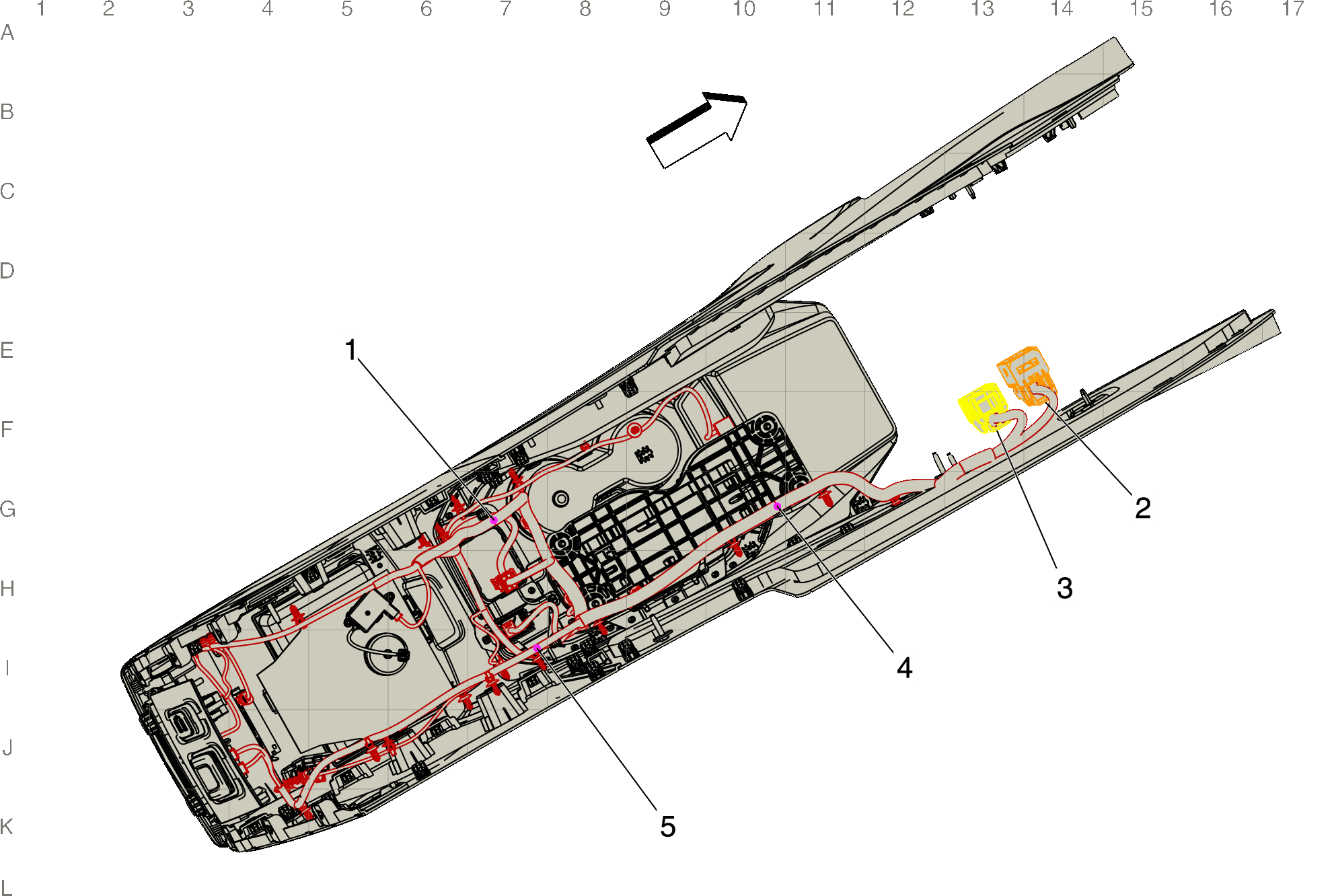

GM4840222Courtesy of GENERAL MOTORS COMPANY
Center Console Harness Routing (X88)

Harness Name Callout
J370 Floor Console Harness (X88 with UEU) 1
X231 Floor Console Harness to Body Harness X231 Floor Console Harness to Body Harness 2
X234 Floor Console Harness to Instrument Panel Harness X234 Floor Console Harness to Instrument Panel Harness 3
J369 Floor Console Harness (X88 with UEU) 4
J312 Body Harness 5
