X85 Steering Wheel Air Bag Coil X1
 Courtesy of GENERAL MOTORS COMPANY
|

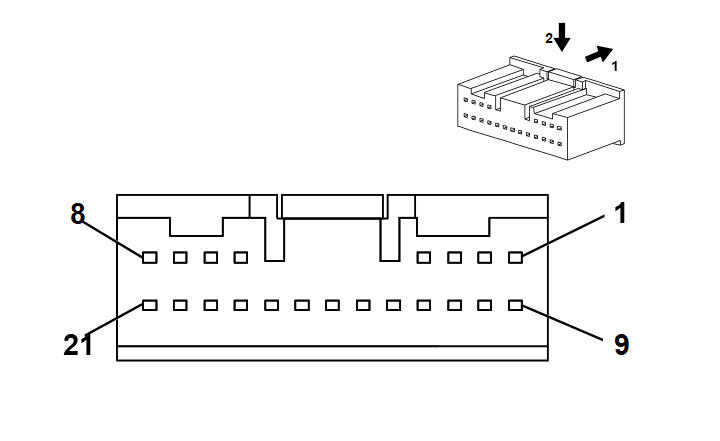

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13510218
- Service Connector: 13510218
- Description: 21-Way F 0.64 Series (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| II |
13575865 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03GF-M064 |
Yazaki 27 |
P |
P |
| III |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/VT |
3021 |
Steering Wheel Air Bag Stage 1 High Control |
II |
- |
| 2 |
0.5 |
BN/OG |
3020 |
Steering Wheel Air Bag Stage 1 Low Control |
II |
- |
| 3 |
0.5 |
WH/OG |
3022 |
Steering Wheel Air Bag Stage 2 Low Control |
II |
- |
| 4 |
0.5 |
OG/GN |
3023 |
Steering Wheel Air Bag Stage 2 High Control |
II |
- |
| 5 |
0.35 |
GN/WH |
3287 |
Horn Switch Signal |
III |
- |
| 6 |
0.5 |
BK |
1750 |
Ground 17 |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK |
1750 |
Ground 17 |
I |
KI3 |
| 9 |
0.35 |
GN/BK |
3894 |
Instrument Cluster LIN Bus 1 |
III |
- |
| 10 |
0.35 |
GN/BU |
4119 |
HVAC Control Module LIN Bus 2 |
III |
- |
| 11 |
0.35 |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
III |
- |
| 12 |
0.35 |
RD/WH |
5440 |
Secondary Fused Battery Positive Voltage 54 |
III |
X88 |
| 13 |
0.35 |
YE |
7556 |
Headlamp Switch Reference |
III |
- |
| 14 |
0.35 |
BN |
6817 |
LED Backlight Dimming Control 1 |
III |
- |
| 15 |
0.35 |
GY/GN |
5737 |
Distance Sensing Cruise Control Gap Up/Down Switch Signal |
III |
KSG/UEU |
| 16 |
0.35 |
VT/YE |
5526 |
Tap Up/Down Switch Signal |
III |
M3W |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
RD/WH |
5440 |
Secondary Fused Battery Positive Voltage 54 |
III |
W49 |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.5 |
VT/WH |
1139 |
Run/Crank Ignition 1 Voltage 11 |
I |
KI3 |
