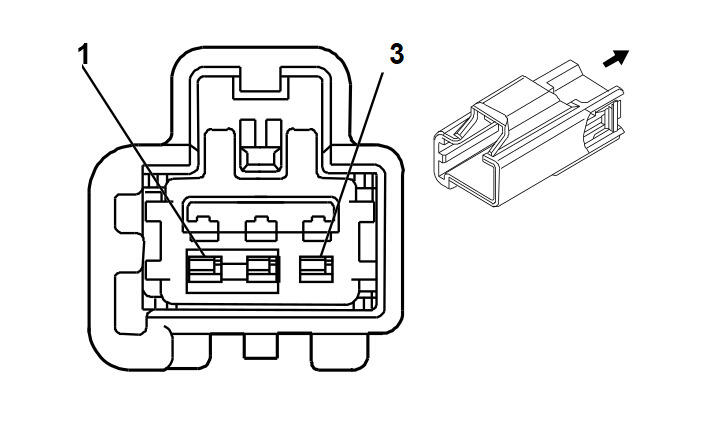

E5H Tail Lamp - Right Inner (W49)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 7282-3440-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way M 1.5 YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/BN |
309 |
Right Park Lamp Control |
I |
W49 |
| 2 |
0.5 |
GN/WH |
24 |
Backup Lamp Control |
I |
W49 |
| 3 |
0.5 |
BK |
1250 |
Ground 12 |
I |
W49 |
