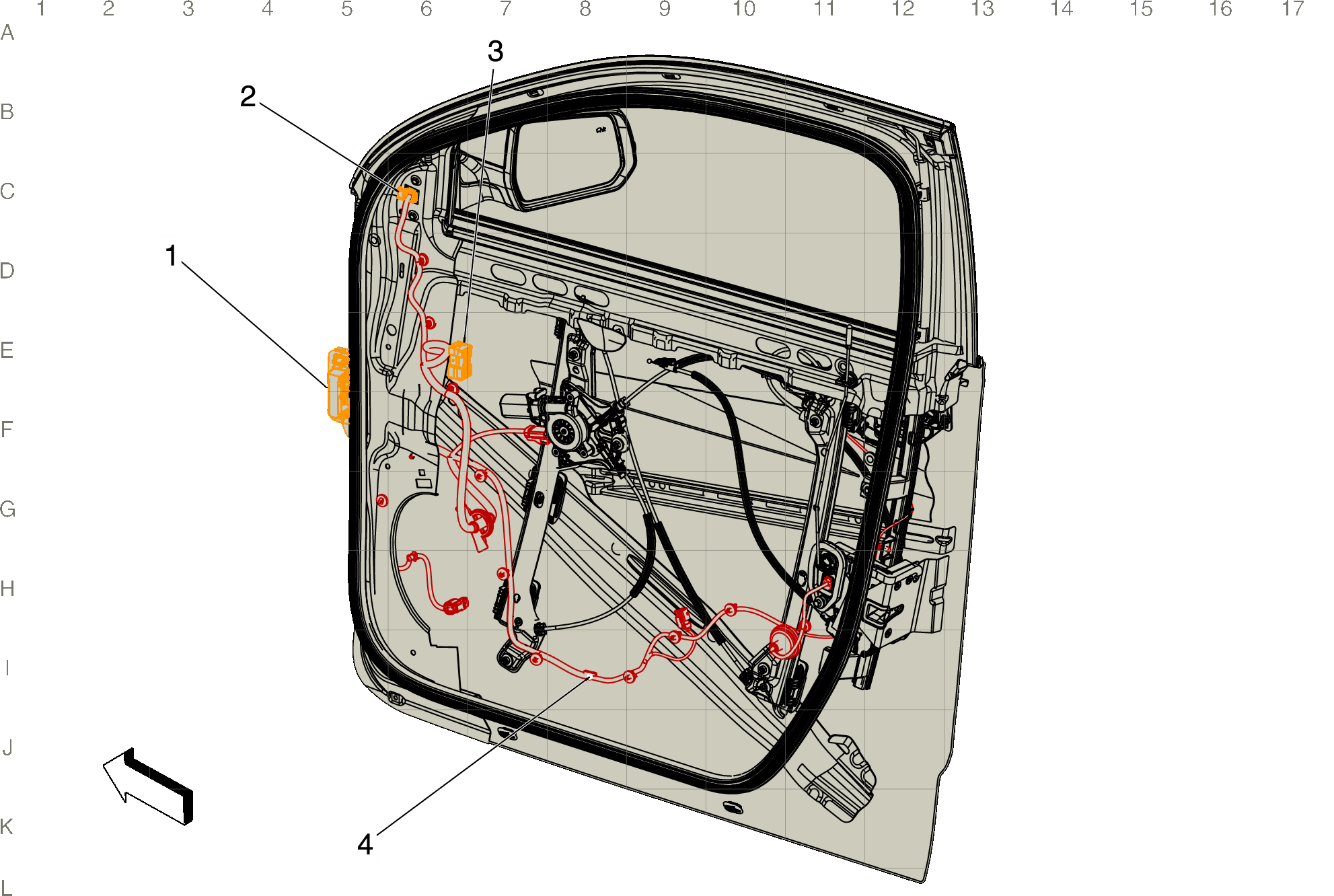

Passenger Door Harness Routing (X88)
Passenger Door Harness Routing (X88)
| Harness Name | Callout |
|---|---|
| X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness (W49) , or X600 Passenger Door Harness to Body Harness (X88) | 1 |
| X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness (UVH) , or X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness (X88) | 2 |
| X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness (W49) , or X605 Passenger Door Harness to Passenger Door Trim Harness (X88) | 3 |
| J600 Passenger Door Harness | 4 |
