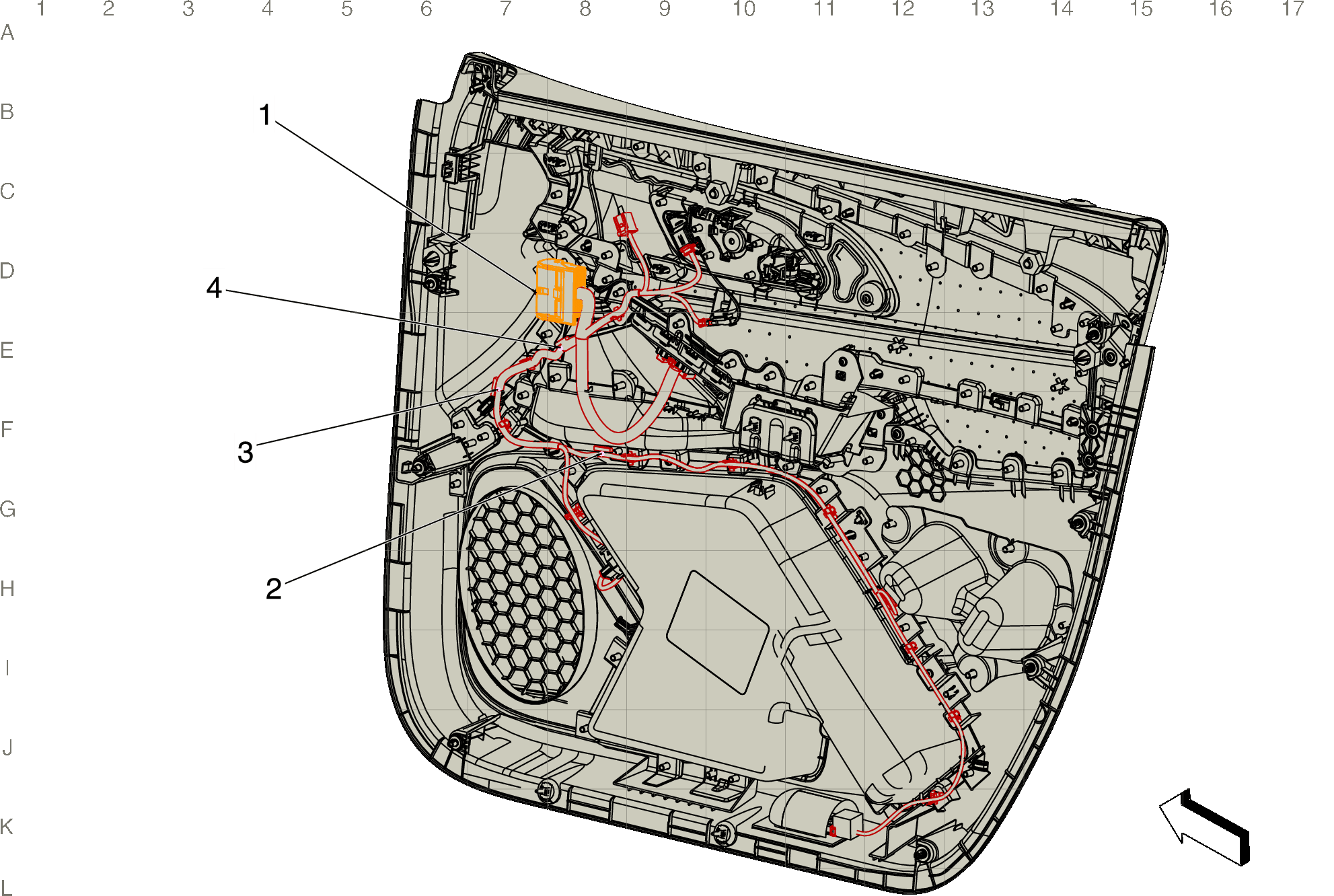

Driver Door Trim Harness Routing (X88)
Driver Door Trim Harness Routing (X88)
| Harness Name | Callout |
|---|---|
| X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness (W49) , or X505 Driver Door Harness to Driver Door Trim Harness (X88) | 1 |
| J502 Driver Door Trim Harness | 2 |
| J503 Driver Door Trim Harness | 3 |
| J504 Driver Door Trim Harness (TB5) | 4 |
