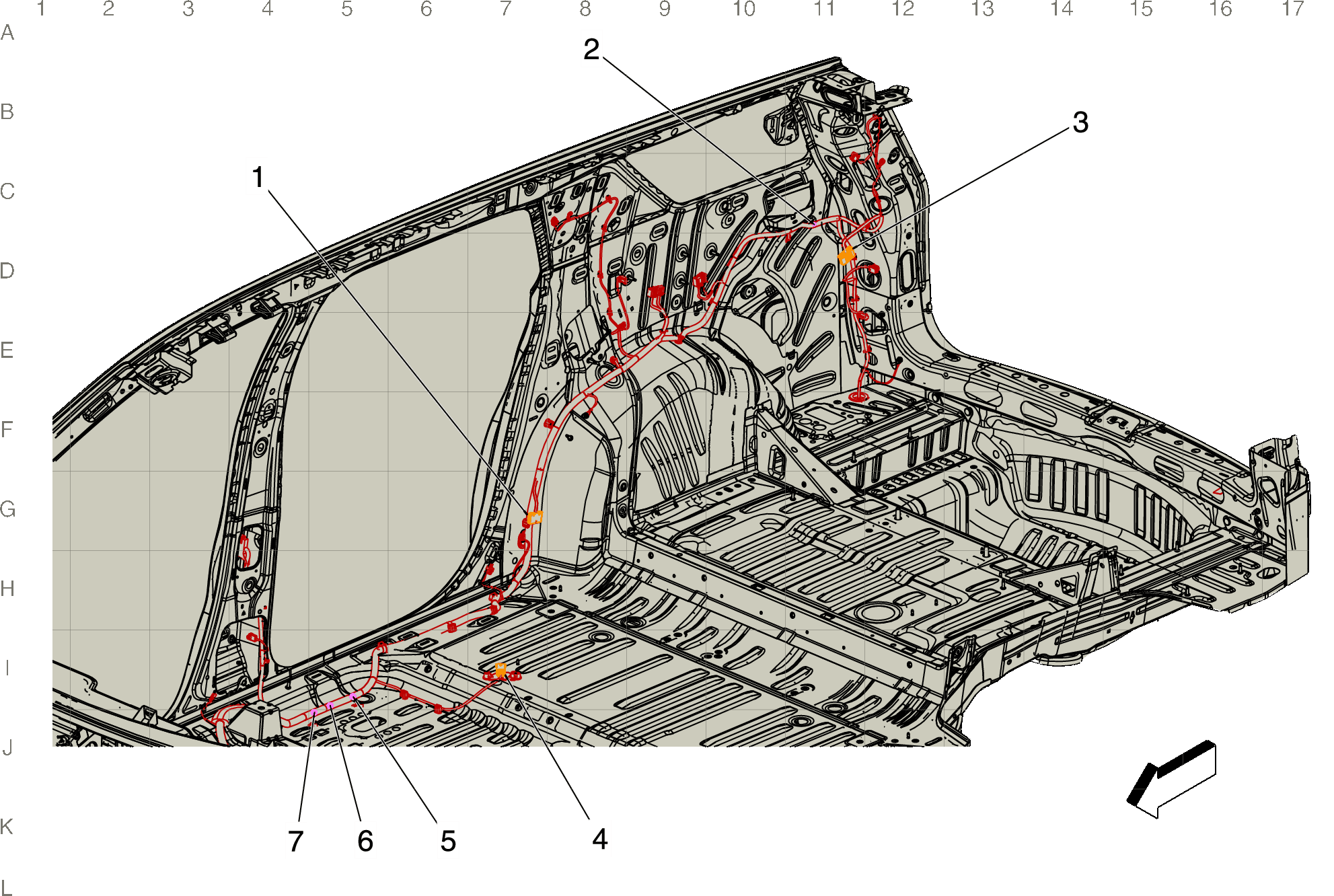

Body Harness Routing - Right Rear Passenger Compartment (X88)
Body Harness Routing - Right Rear Passenger Compartment (X88)
| Harness Name | Callout |
|---|---|
| JX304 Body Harness JX304 Splice Pack | 1 |
| J326 Body Harness | 2 |
| X306 Body Harness to HVAC Rear Harness X306 Body Harness to HVAC Rear Harness (W49) , or X306 Body Harness to HVAC Rear Harness (X88) | 3 |
| X304 Right Rear Seat Harness to Body Harness (KA6) X304 Right Rear Seat Harness to Body Harness (KA6) , or X304 Right Rear Seat Harness to Body Harness (X88) | 4 |
| J321 Body Harness | 5 |
| J327 Body Harness | 6 |
| J308 Body Harness (UGN) | 7 |
