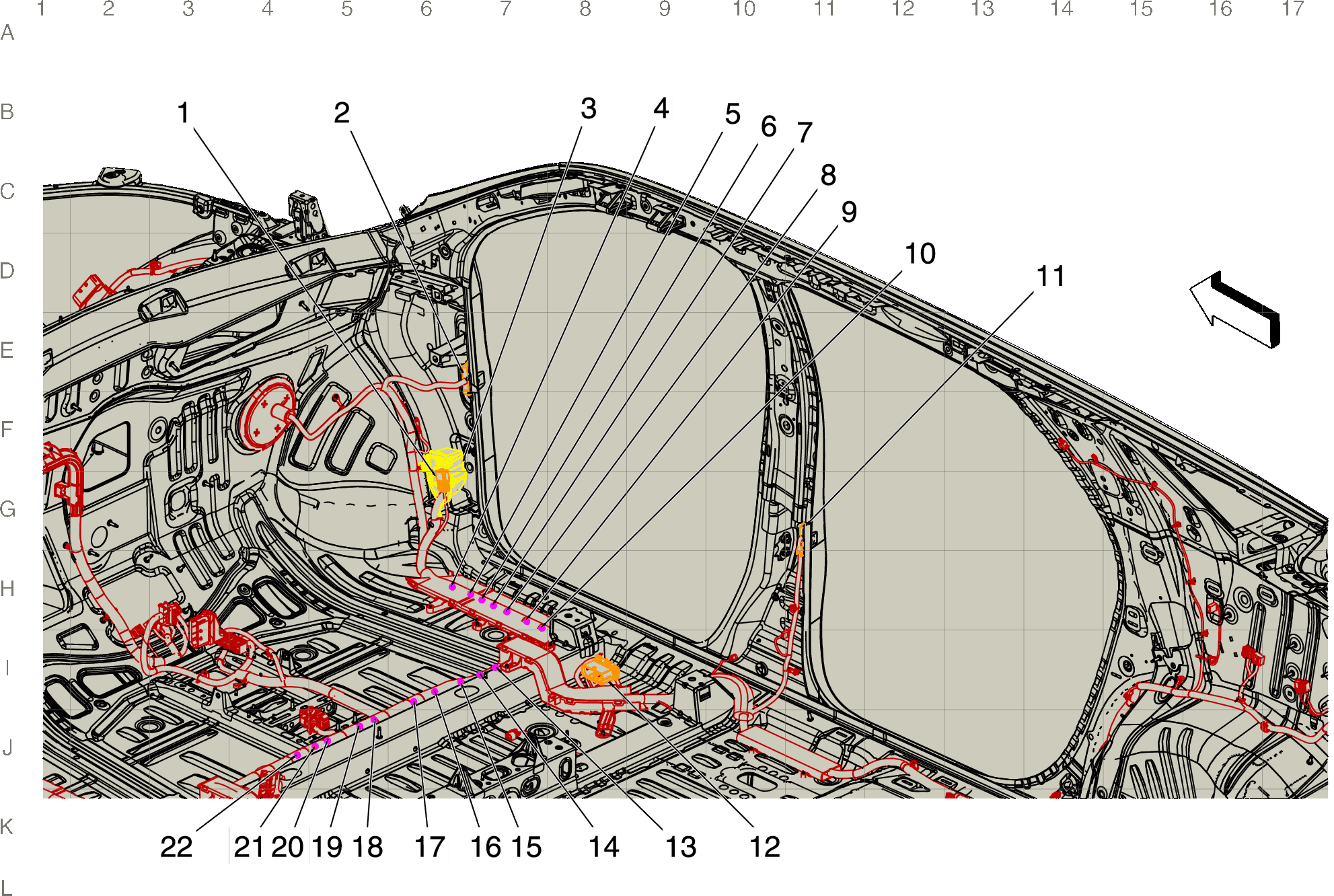

Body Harness Routing - Right Front and Center of Passenger Compartment (X88)
Body Harness Routing - Right Front and Center of Passenger Compartment (X88)
| Harness Name | Callout |
|---|---|
| X208 Instrument Panel Harness to Body Harness X208 Instrument Panel Harness to Body Harness | 1 |
| X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness (W49) , or X600 Passenger Door Harness to Body Harness (X88) | 2 |
| X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness () | 3 |
| J205 Body Harness | 4 |
| J314 Body Harness | 5 |
| J210 Body Harness | 6 |
| J209 Body Harness | 7 |
| J307 Body Harness | 8 |
| J306 Body Harness | 9 |
| J310 Body Harness | 10 |
| X800 Right Rear Door Harness to Body Harness X800 Right Rear Door Harness to Body Harness (W49) | 11 |
| X302 Passenger Seat Harness to Body Harness X302 Passenger Seat Harness to Body Harness () | 12 |
| J200 Body Harness | 13 |
| J112 Body Harness (UGN) | 14 |
| J204 Body Harness | 15 |
| J202 Body Harness | 16 |
| J301 Body Harness | 17 |
| J351 Driver Seat Harness (KA1) | 18 |
| J212 Body Harness | 19 |
| J213 Body Harness | 20 |
| J206 Body Harness | 21 |
| J313 Body Harness | 22 |
