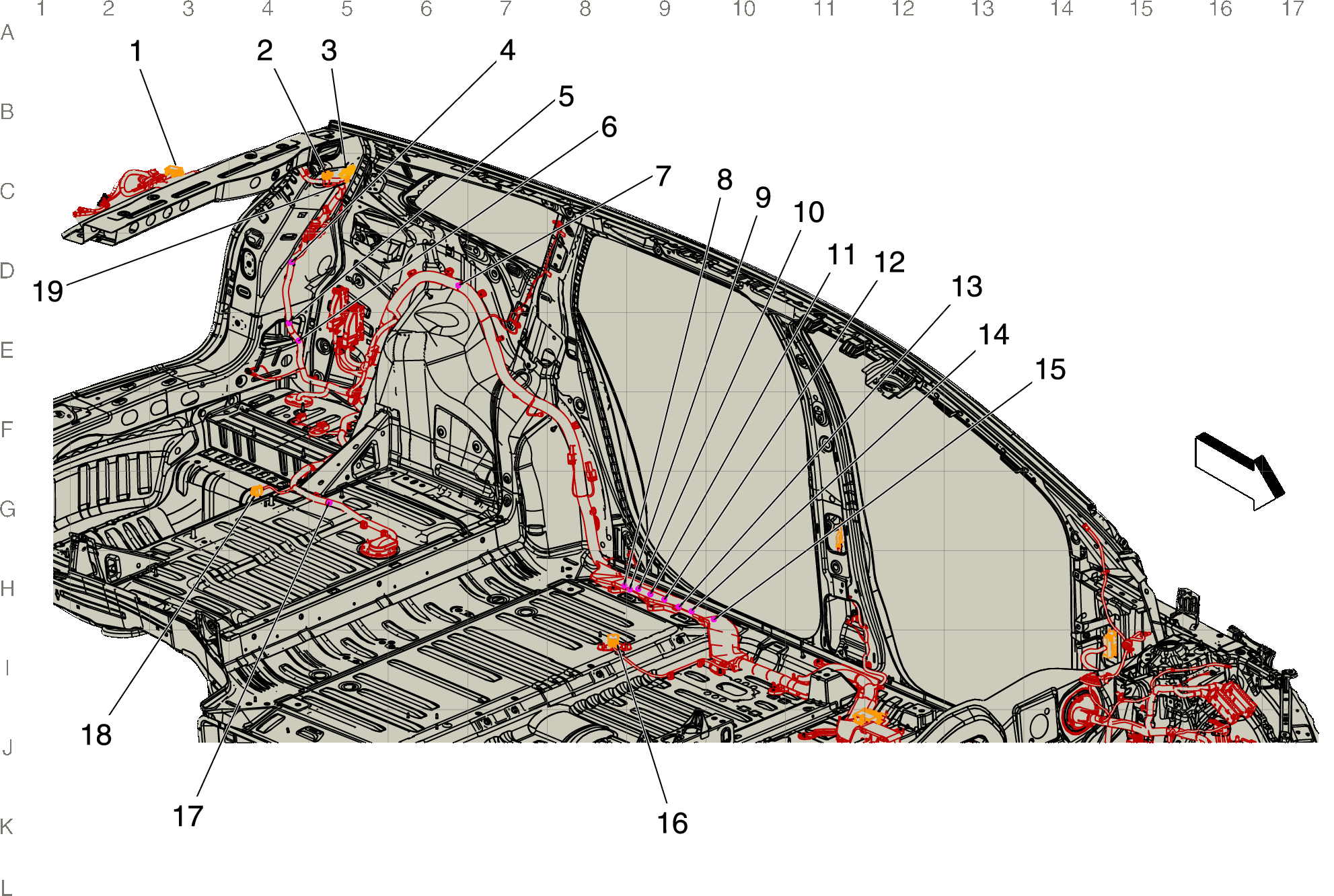

Body Harness Routing - Left Rear Passenger Compartment (W49)
Body Harness Routing - Left Rear Passenger Compartment (W49)
| Harness Name | Callout |
|---|---|
| X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness (W49) , or X900 Body Harness to Liftgate Harness (X88) | 1 |
| X906 Body Harness to Liftgate Harness X906 Body Harness to Liftgate Harness (UVB) , or X906 Body Harness to Liftgate Harness (UV2+DRZ) | 2 |
| X305 Body Harness to Headliner Harness X305 Body Harness to Headliner Harness () , or X305 Body Harness to Headliner Harness (X88) | 3 |
| J112 Body Harness (UGN) | 4 |
| J333 Body Harness | 5 |
| J328 Body Harness (UGN or UEU) | 6 |
| J350 Body Harness (AQ5) | 7 |
| J325 Body Harness | 8 |
| J322 Body Harness (KA6) | 9 |
| J345 Body Harness (C3U) | 10 |
| J317 Body Harness | 11 |
| J211 Body Harness (V92) | 12 |
| J320 Body Harness | 13 |
| J132 | 14 |
| J348 Body Harness | 15 |
| X303 Left Rear Seat Harness to Body Harness (KA6) X303 Left Rear Seat Harness to Body Harness (KA6) , or X303 Left Rear Seat Harness to Body Harness (X88) | 16 |
| J323 Body Harness | 17 |
| X340 Body Harness to Left Rear Seat Harness (AS8) X340 Body Harness to Left Rear Seat Harness | 18 |
| X307 X307 Headliner Harness to Body Harness , or X307 Headliner Harness to Body Harness (X88) | 19 |
