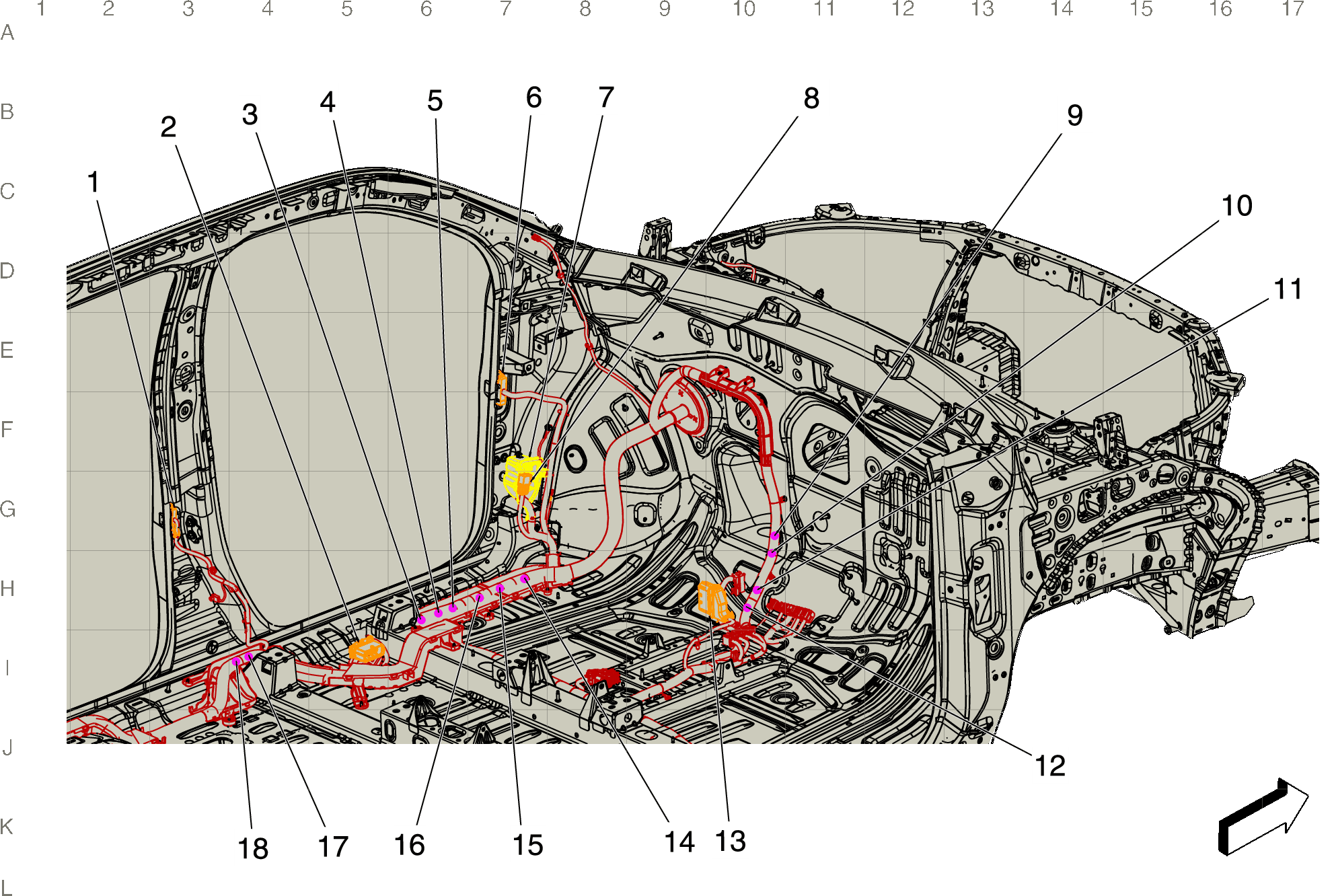

Body Harness Routing - Left Front of Passenger Compartment (X88 with UQF)
Body Harness Routing - Left Front of Passenger Compartment (X88 with UQF)
| Harness Name | Callout |
|---|---|
| X700 Left Rear Door Harness to Body Harness X700 Left Rear Door Harness to Body Harness | 1 |
| X301 Driver Seat Harness to Body Harness X301 Driver Seat Harness to Body Harness | 2 |
| J318 | 3 |
| J305 Body Harness | 4 |
| J347 Driver Seat Harness | 5 |
| X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness (W49) , or X500 Driver Door Harness to Body Harness (X88) | 6 |
| X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness | 7 |
| X235 Instrument Panel Harness to Body Harness X235 Instrument Panel Harness to Body Harness | 8 |
| J208 Body Harness | 9 |
| J207 Body Harness | 10 |
| J210 Body Harness | 11 |
| J209 Body Harness | 12 |
| X231 Floor Console Harness to Body Harness X231 Floor Console Harness to Body Harness | 13 |
| J319 | 14 |
| J304 Body Harness | 15 |
| J203 | 16 |
| J315 Body Harness | 17 |
| J312 Body Harness | 18 |
