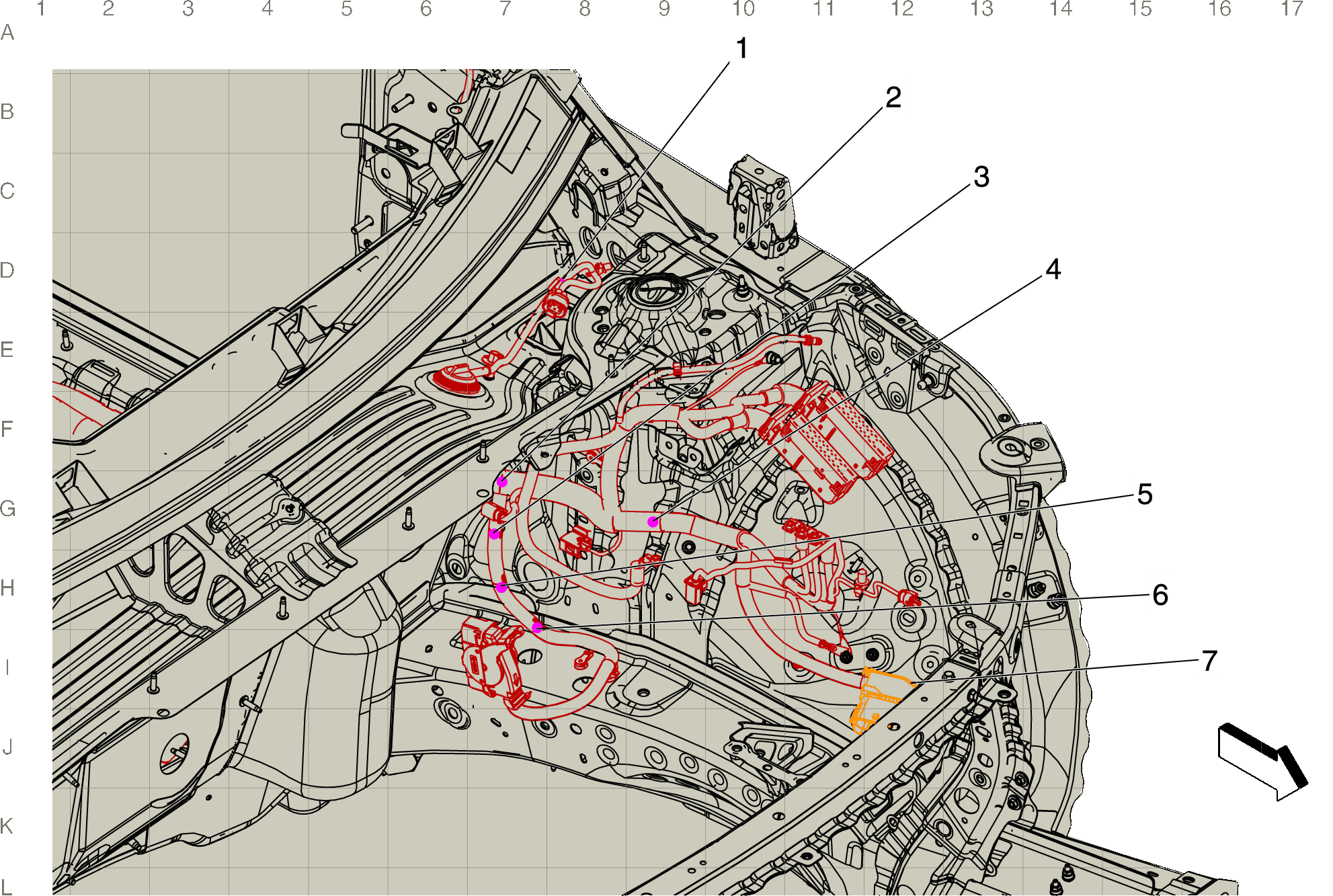

Body Harness Routing - Engine Compartment (1 of 2) (X88)
Body Harness Routing - Engine Compartment (1 of 2) (X88)
| Harness Name | Callout |
|---|---|
| J135 Body Harness | 1 |
| J137 Body Harness | 2 |
| J138 Body Harness | 3 |
| J141 Body Harness | 4 |
| J140 Body Harness | 5 |
| J139 Body Harness | 6 |
| X112 Engine Harness to Body Harness X112 Engine Harness to Body Harness | 7 |
