Home >> Buick >> 2020 >> Enclave Premium, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Data Communications - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Gateway Expansion Bus High Speed GMLAN (UGN)

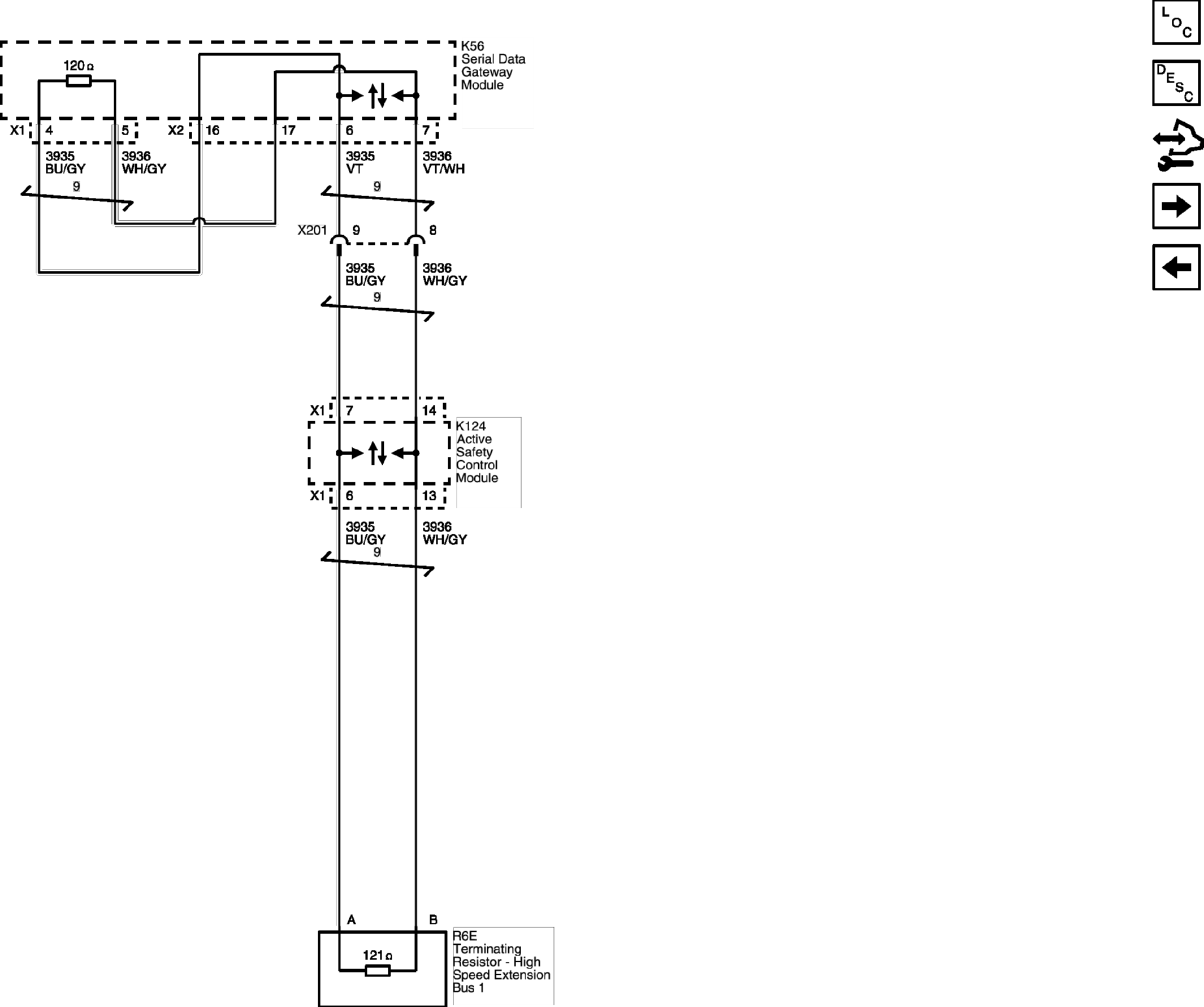

Gateway Expansion Bus High Speed GMLAN (UGN)

GM5210102

Courtesy of GENERAL MOTORS COMPANY
