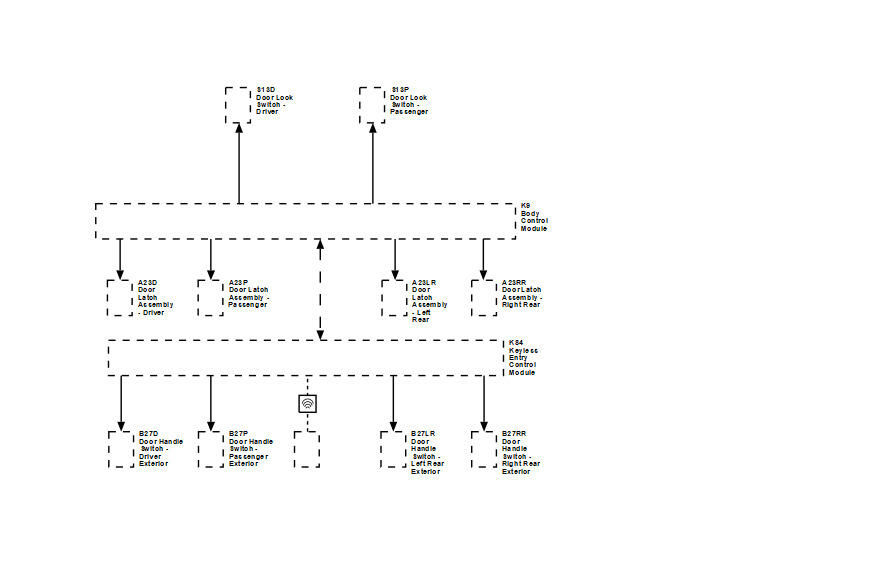

Power Door Locks Block Diagram

GM3270435Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WL Wireless
S13D S13D Door Lock Switch - Driver
S13P S13P Door Lock Switch - Passenger
K9 K9 Body Control Module
A23RR A23RR Door Latch Assembly - Right Rear
A23LR A23LR Door Latch Assembly - Left Rear
A23P A23P Door Latch Assembly - Passenger
A23D A23D Door Latch Assembly - Driver
K84 K84 Keyless Entry Control Module
B27RR B27RR Door Handle Switch - Right Rear Exterior
B27LR B27LR Door Handle Switch - Left Rear Exterior
B27P B27P Door Handle Switch - Passenger Exterior
B27D B27D Door Handle Switch - Driver Exterior
