Cigar Lighter/Power Outlet Wiring Schematics
>>

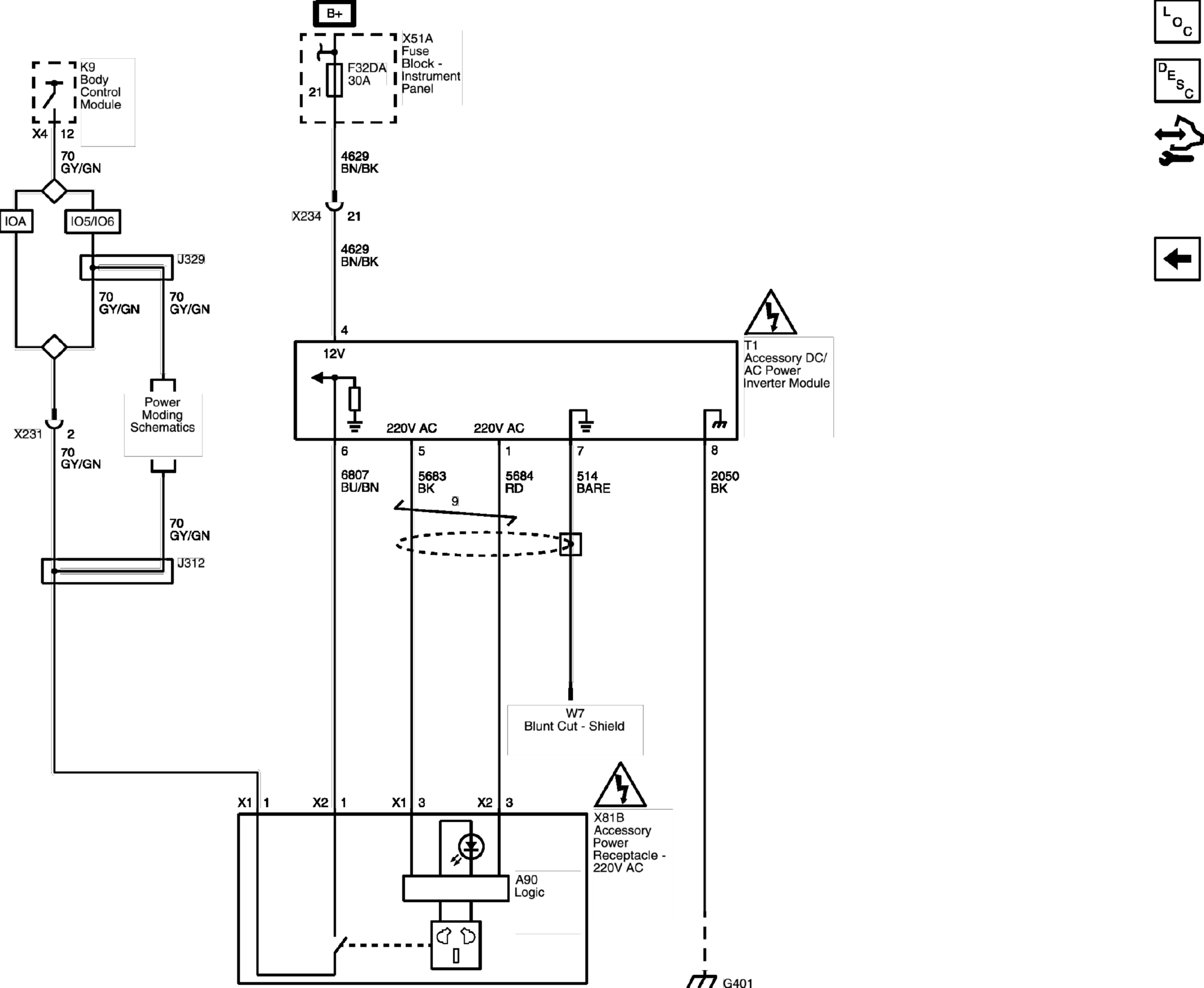

Accessory Power Receptacle - 220V AC (KI7)
Accessory Power Receptacle - 220V AC (KI7)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
