Home
>>
Buick
>>
2020
>>
Enclave Premium, AWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Active Noise Cancellation System
>>
Schematic Wiring Diagrams
>>
Active Noise Cancellation Wiring Schematics
>>

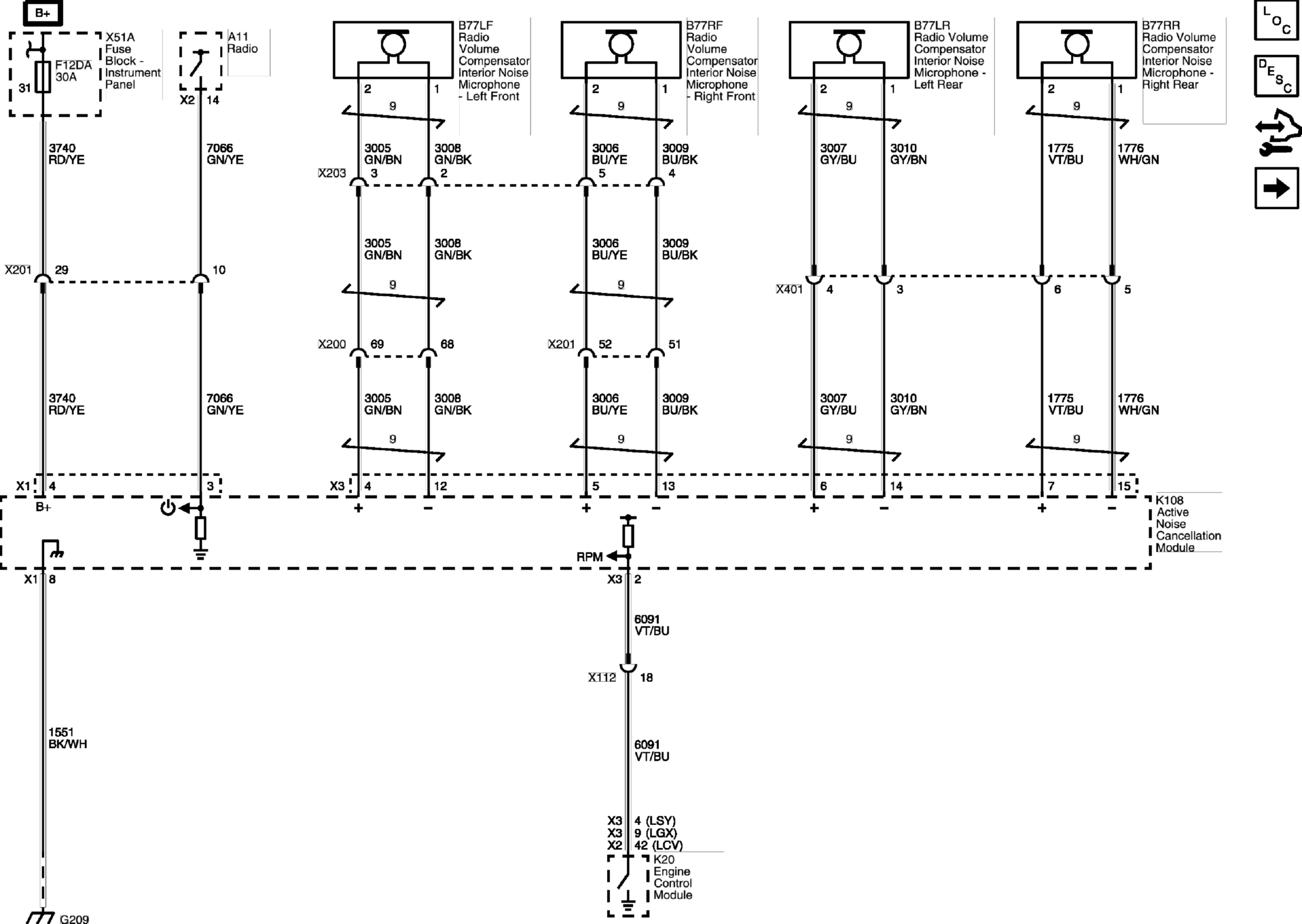

Active Noise Cancellation Module Microphones, Power, Ground and Controls (IOS)
Active Noise Cancellation Module Microphones, Power, Ground and Controls (IOS)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
