Heater Outlet Hose Replacement (3.6L LGX)

Courtesy of GENERAL MOTORS COMPANY

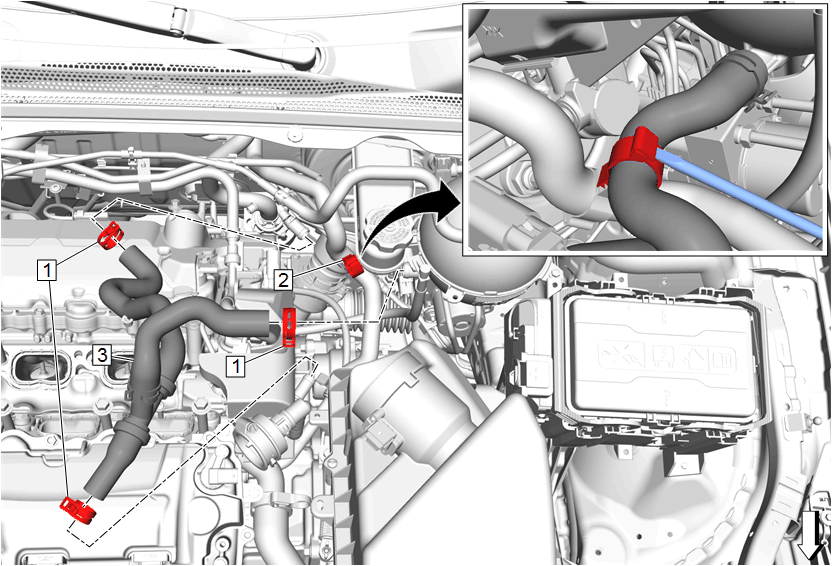

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling Air Cleaner Outlet Duct Replacement
1	Heater Outlet Hose Clamp [3x] Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Heater Outlet Hose Retainer Procedure Unlock the retaining tabs.
3	Heater Outlet Hose Preliminary Procedures Fill the cooling system to the proper level. Cooling System Draining and Filling Start the engine and check for coolant leaks.
