Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

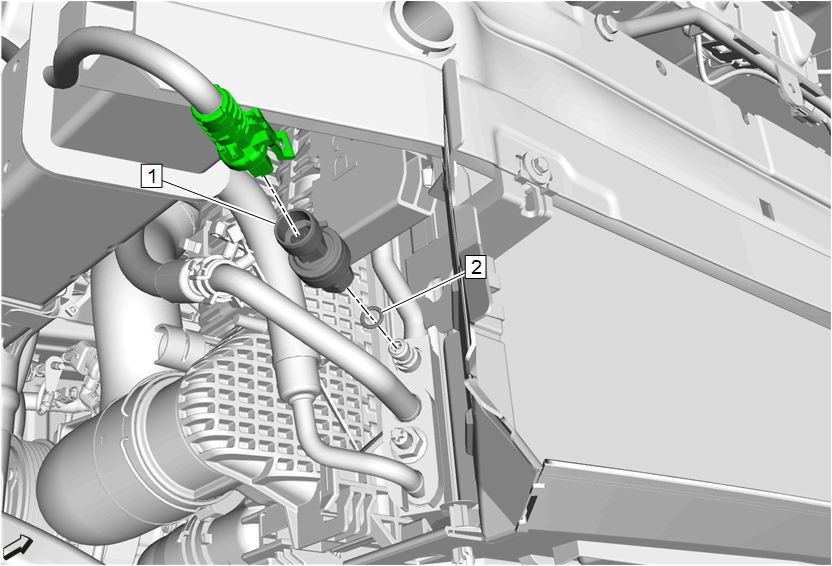

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Air Conditioning Refrigerant Pressure Sensor CAUTION: Fastener Caution Procedure Disconnect the electrical connector. Tighten 7 N.m (62 lb in)
2	Air Conditioning Refrigerant Pressure Sensor Seal Procedure DISCARD the O-ring seal. Install a NEW O-ring seal. Using the GE-39400-A detector and leak test the A/C compressor fittings. Special Tools GE-39400-A Electronic Halogen Leak Detector Equivalent regional tools: Special Tools

Callout

Component Name

Air Conditioning Refrigerant Pressure Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
7 N.m (62 lb in)

Air Conditioning Refrigerant Pressure Sensor Seal

Procedure

Special Tools
GE-39400-A Electronic Halogen Leak Detector
Equivalent regional tools: Special Tools
