Control Valve Solenoid Body - Control Valve Body Side

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

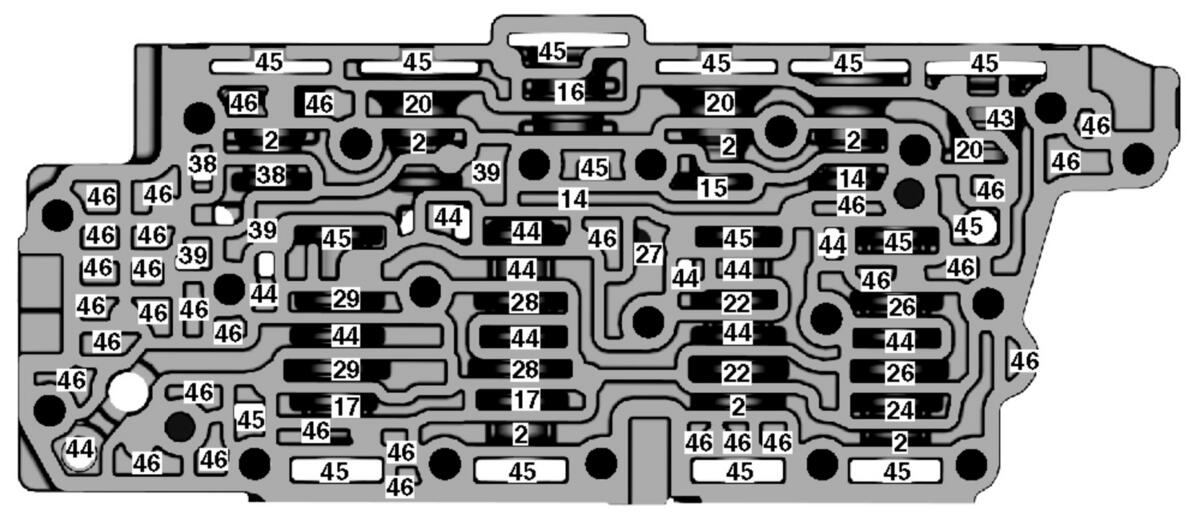

Fig 1: Identifying Control Valve Solenoid Body Fluid Passages - Control Valve Body Side
GM4508194Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
2 Line
14 Line VFS
15 TCC VFS
16 Clutch Select Solenoid
17 Drive
18 Drive 2
20 Actuator Feed Limit
22 1-Reverse/6-7-8-9 Feed
24 5-7-Reverse Clutch Feed
26 5-7-Reverse Clutch Regulator
27 1-2-3-4-5-6 Clutch
28 1-2-3-4-5-6 Clutch Regulator
29 2-9 Clutch
38 Variable Force Solenoid Valve Signal
39 S4 Variable Force Solenoid Valve Signal
44 Exhaust Backfill
45 Exhaust
46 Void
