Control Valve Body - Control Valve Solenoid Body Side

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

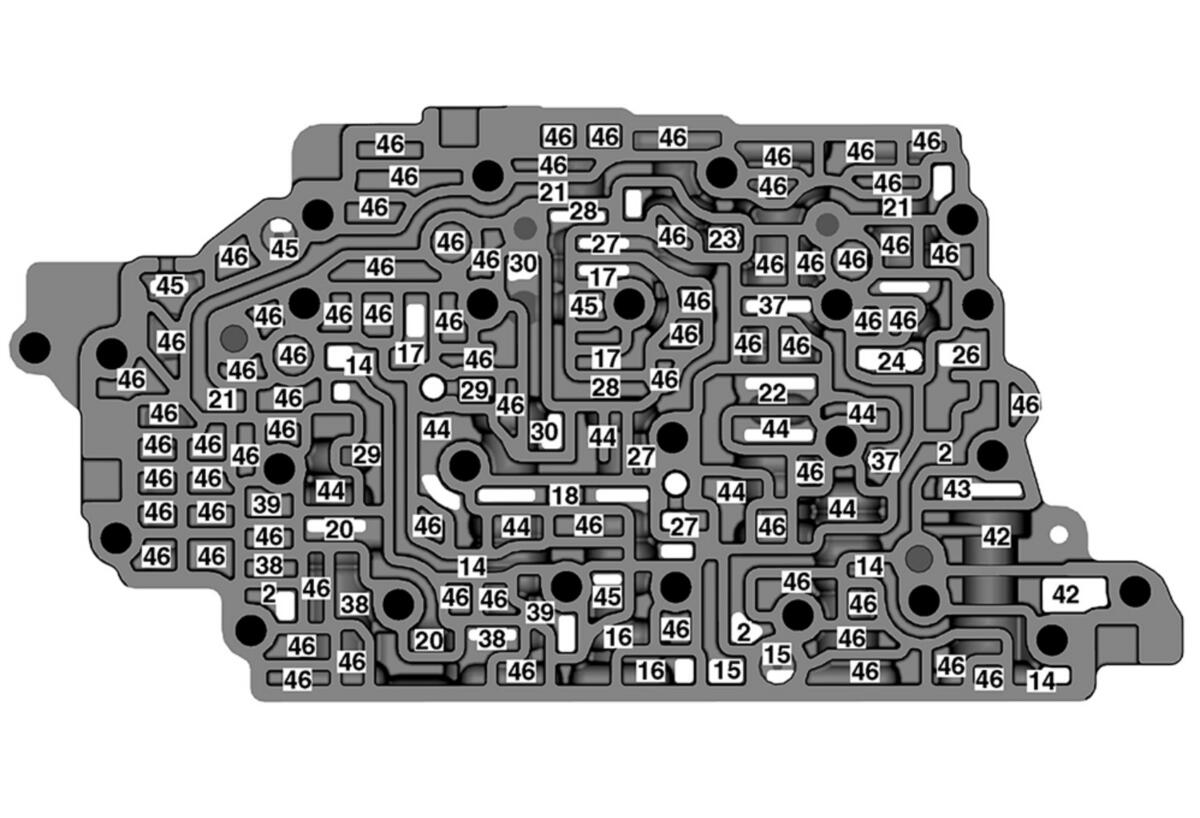

Fig 1: Identifying Control Valve Body Fluid Passages - Control Valve Solenoid Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
2	Line
14	Line VFS
15	TCC VFS
16	Clutch Select Solenoid
17	Drive
18	Drive 2
20	Actuator Feed Limit
21	Component Feed
22	1-Reverse/6-7-8-9 Feed
23	1-Reverse/6-7-8-9 Latch
24	5-7-Reverse Clutch Feed
26	5-7-Reverse Clutch Regulator
27	1-2-3-4-5-6 Clutch
28	1-2-3-4-5-6 Clutch Regulator
29	2-9 Clutch
30	3-8 Clutch
37	Reverse/5-7-Reverse Feed
38	Variable Force Solenoid Valve Signal
39	S4 Variable Force Solenoid Valve Signal
43	Fluid Level Solenoid
44	Exhaust Backfill
45	Exhaust
46	Void
