Front Differential Carrier Bearing Removal (AWD)
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

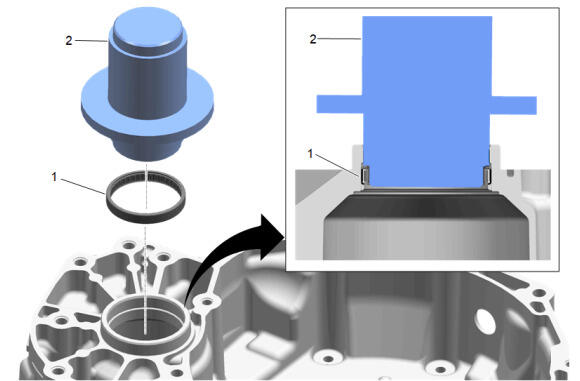

| Callout |
Component Name |
| 1 |
Front Differential Carrier Bearing
Procedure
Press the tool into bearing until the bearing pops out of the housing.Special Tools
- DT-49831
Differential Bearing Remover/Installer (2 Pinion Blue)
- DT-50087
Differential Bearing Remover/Installer (4 Pinion Red)
|
