Section 154 (Automatic Transmission - 9T50 (M3D) And 9T60 (M3T) - Repair Instructions - Off Vehicle)
>>
Repair Instructions - Off Vehicle
>>
Control Valve Body Cover Removal
>>
Park Inhibitor Solenoid Removal
Park Inhibitor Solenoid Removal
WARNING:
This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

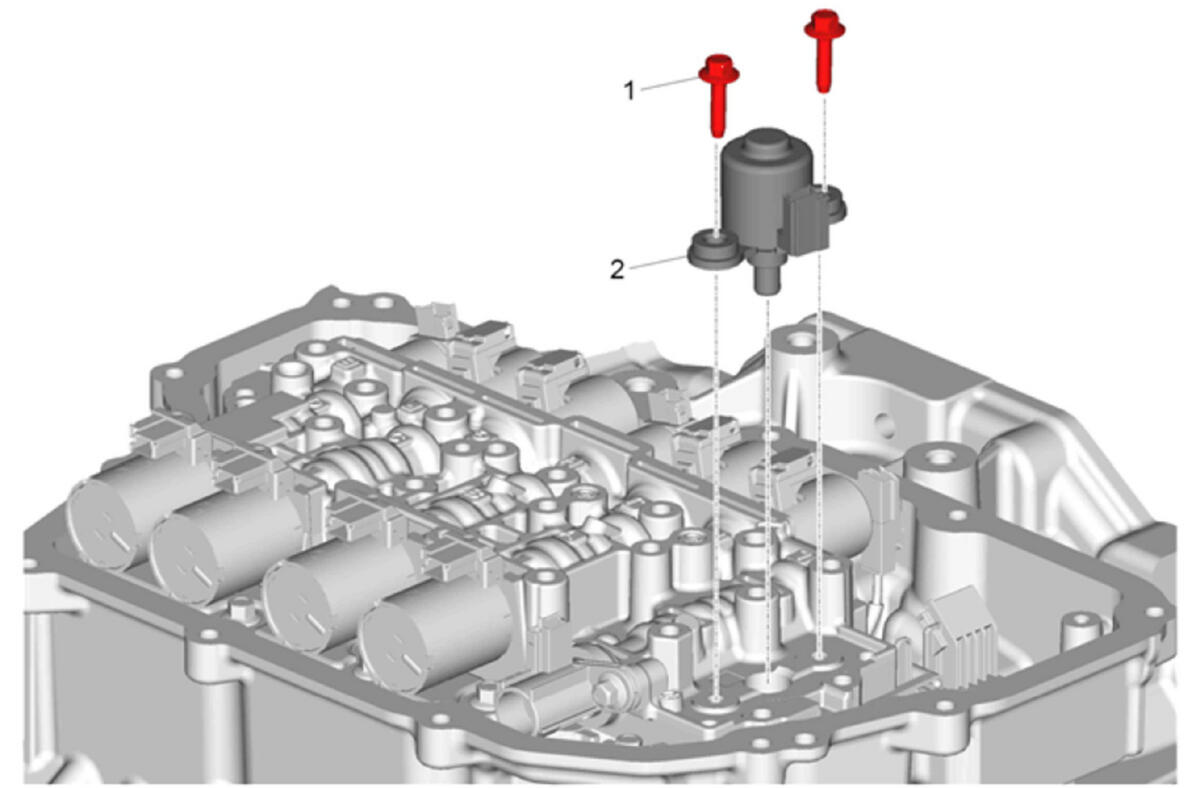

Park Inhibitor Solenoid Removal
Callout
Component Name
1
Control Valve Solenoid Body Bolt [2x]
2
Park Inhibitor Solenoid
