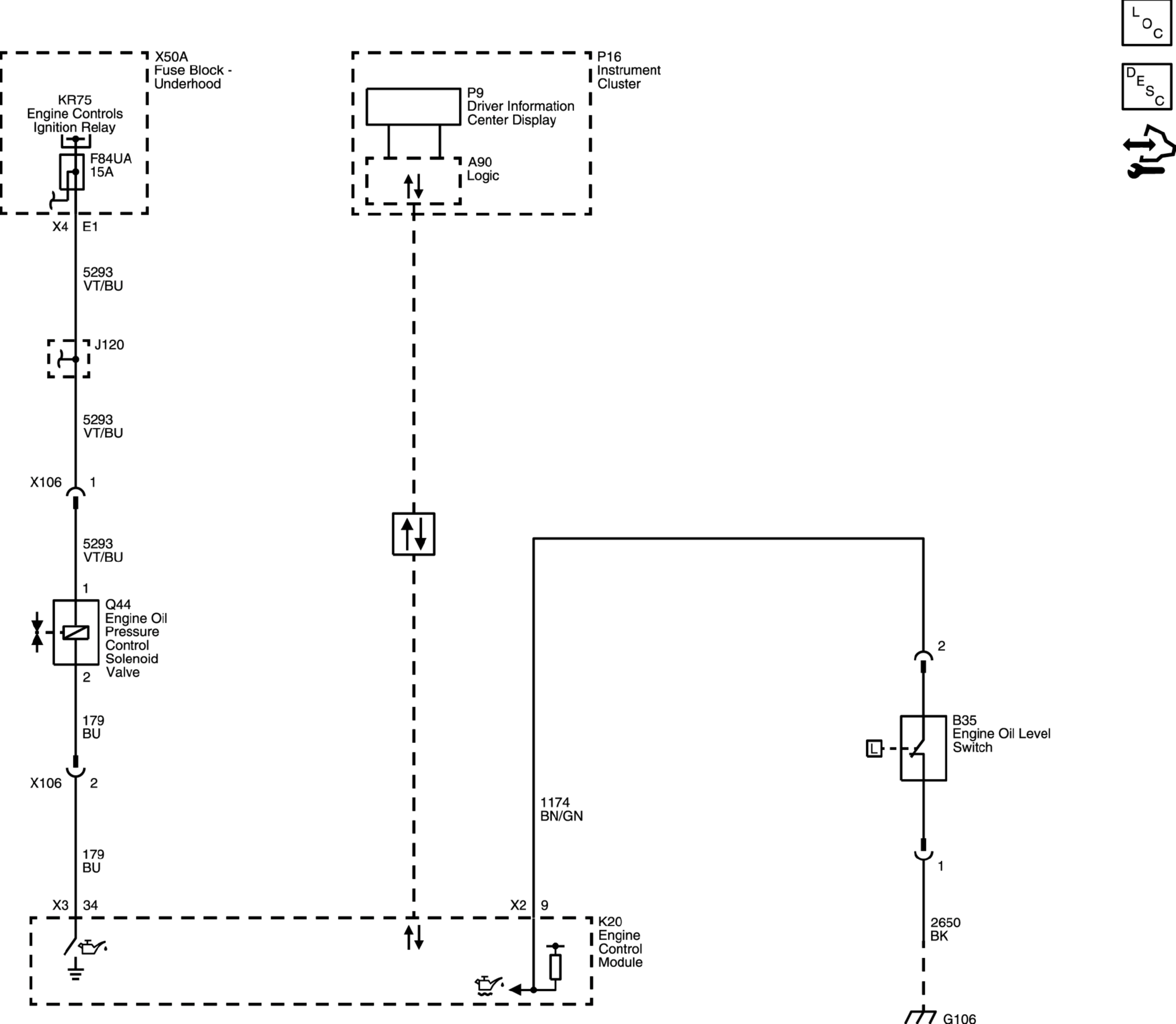

Engine Oil Level and Pressure Control

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
GM5209389Courtesy of GENERAL MOTORS COMPANY
