Engine Component Assemblies
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

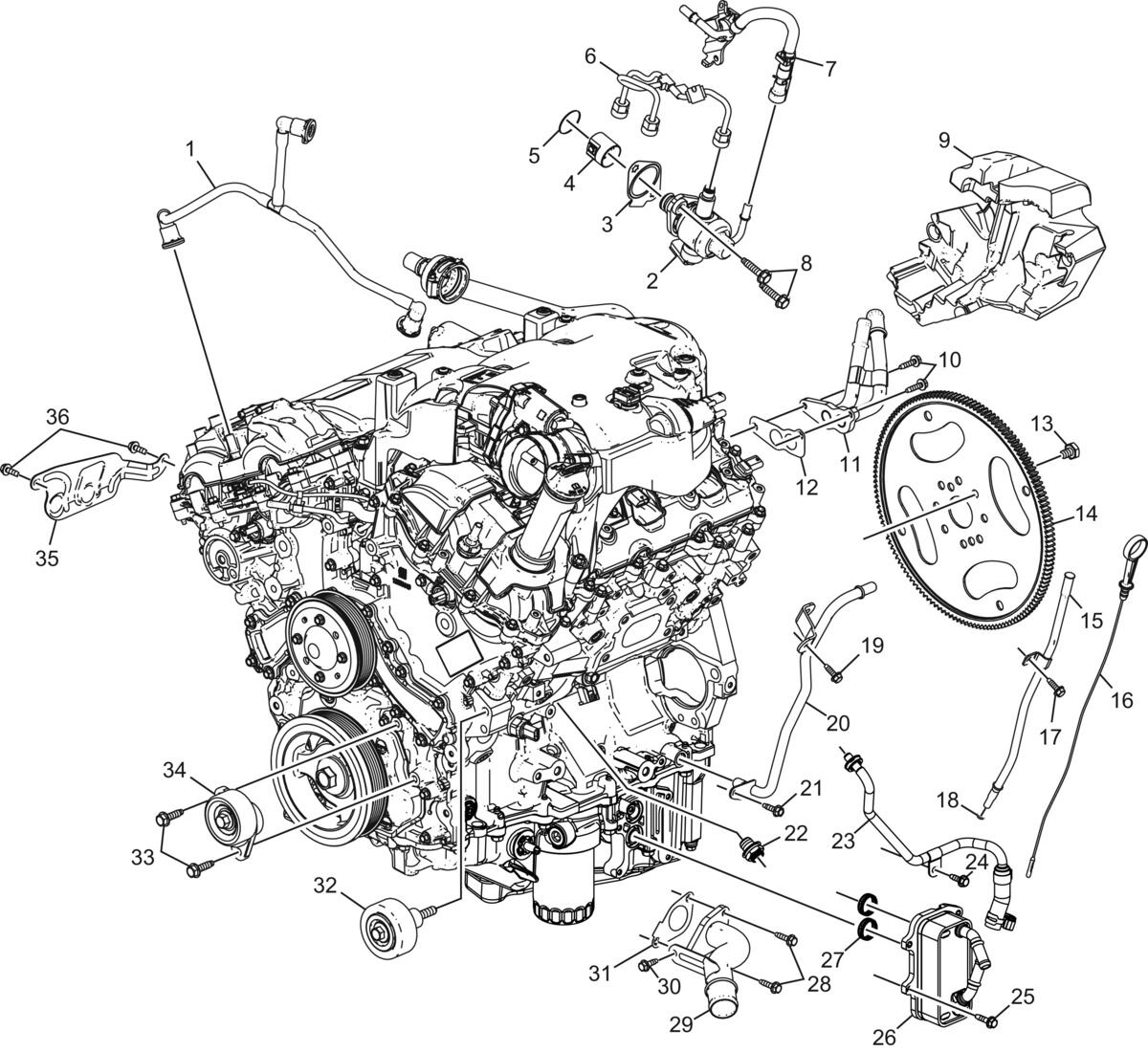

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Tube Connector (PCV) |
| 2 | Fuel Pump |
| 3 | Fuel Pump Bracket Gasket |
| 4 | Valve Lifter Follower |
| 5 | Fuel Pump O-Ring |
| 6 | Fuel Feed Intermediate Pipe |
| 7 | Fuel Feed Pipe |
| 8 | Fuel Pump Bolt [2x] |
| 9 | Engine Rear Noise Shield |
| 10 | Heater Inlet and Outlet Pipe Bolt [2x] |
| 11 | Heater Inlet and Outlet Pipe |
| 12 | Heater Inlet and Outlet Pipe Gasket |
| 13 | Automatic Transmission Flex Plate Bolt [8x] |
| 14 | Automatic Transmission Flex Plate |
| 15 | Oil Level Indicator Tube |
| 16 | Oil Level Indicator |
| 17 | Oil Level Indicator Tube Bolt |
| 18 | Oil Level Indicator Tube Seal |
| 19 | Vacuum Pump Pipe Bolt |
| 20 | Vacuum Pump Pipe |
| 21 | Vacuum Pump Pipe Bolt |
| 22 | Engine Oil Cooler Fitting |
| 23 | Engine Oil Cooler Coolant Inlet Pipe |
| 24 | Engine Oil Cooler Coolant Inlet Hose Bracket Bolt |
| 25 | Engine Oil Cooler Adapter Bolt |
| 26 | Engine Oil Cooler |
| 27 | Engine Oil Cooler Adapter Seal |
| 28 | Water Pump Inlet Pipe Bolt [2x] |
| 29 | Water Pump Inlet Pipe |
| 30 | Water Pump Inlet Pipe Bolt |
| 31 | Water Inlet Seal |
| 32 | Belt Idler Pulley |
| 33 | Drive Belt Tensioner Bolt [2x] |
| 34 | Drive Belt Tensioner |
| 35 | Knock Sensor Heat Shield |
| 36 | Knock Sensor Heat Shield Bolt [2x] |
