Spark Plug Replacement (Bank 1)

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

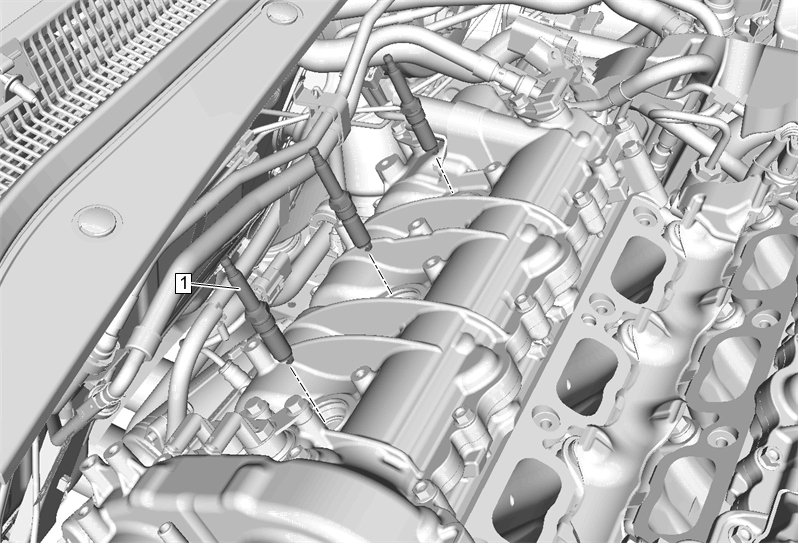

Callout	Component Name
Preliminary Procedure Ignition Coil Replacement - Bank 1
1	Spark Plug [3x] CAUTION: Refer to Component Fastener Tightening Caution . Procedure If reusing the spark plugs, inspect for wear or damage. Spark Plug Inspection If using NEW spark plugs do NOT attempt to check gap or damage can occur, plugs come pre gapped. Tighten 18 N.m (13 lb ft)

Callout

Component Name

Preliminary Procedure
Ignition Coil Replacement - Bank 1

Spark Plug [3x]

CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure

If reusing the spark plugs, inspect for wear or damage. Spark Plug Inspection
If using NEW spark plugs do NOT attempt to check gap or damage can occur, plugs come pre gapped.
Tighten

18 N.m (13 lb ft)
