Manifold Absolute Pressure Sensor Replacement
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

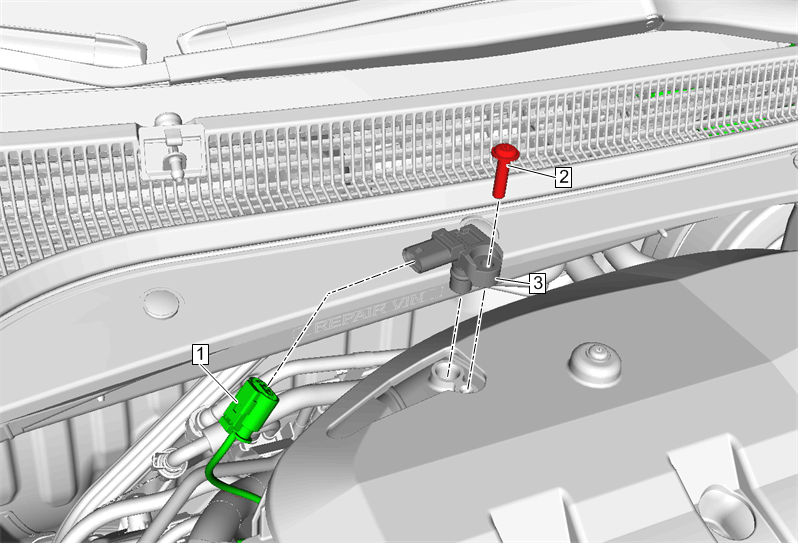

| Callout | Component Name |
|---|---|
| 1 | Electrical Connector |
| 2 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten: 7 N.m (62 lb in) |
| 3 | Manifold Absolute Pressure Sensor
NOTE:
Always install the seal supplied with the manifold absolute pressure sensor. |
