Fuel Pressure Sensor Replacement - Fuel Feed Pipe

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement

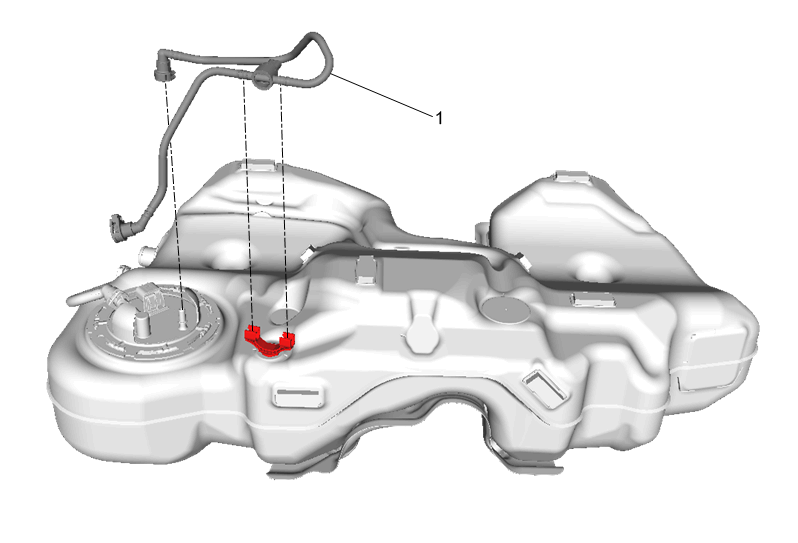

1	Fuel Pressure Sensor Procedure Disconnect the electrical connector. Fuel Feed Pipe @ Fuel Tank Fuel Pump Module - Disconnect - Plastic Collar Quick Connect Fitting Service Remove from retainers. NOTE: Fuel pressure sensor is serviced as part of fuel feed pipe assembly.

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement

Fuel Pressure Sensor

Procedure

Disconnect the electrical connector.
Fuel Feed Pipe @ Fuel Tank Fuel Pump Module - Disconnect - Plastic Collar Quick Connect Fitting Service
Remove from retainers.

NOTE:

Fuel pressure sensor is serviced as part of fuel feed pipe assembly.
