Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

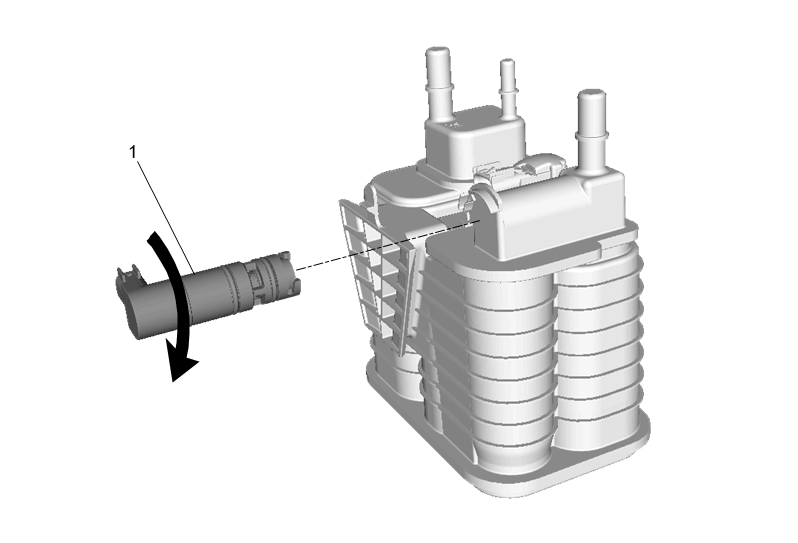

GM4557183Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Evaporative Emission Canister Replacement
1 Evaporative Emission Canister Vent Solenoid Valve

Procedure

  1. Disconnect the electrical connector.
  2. Rotate solenoid clockwise 1/4 turn to remove.
