Camshaft Position Actuator Locating Pin Control Valve Replacement (Bank 1)
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

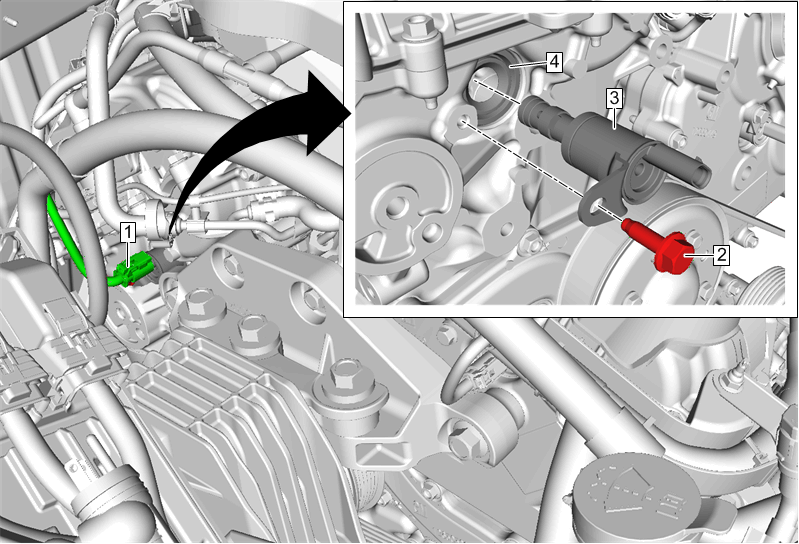

| Callout | Component Name |
|---|---|
| 1 | Electrical Connector |
| 2 | Camshaft Position Actuator Locating Pin Control Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Position Actuator Locating Pin Control Valve |
| 4 | Camshaft Position Actuator Solenoid Valve Seal Procedure Inspect the Camshaft Position Actuator Solenoid Valve Seal and replace as necessary. Engine Front Cover Disassemble , - Engine Front Cover Assemble |
